Server Motherboard Archives

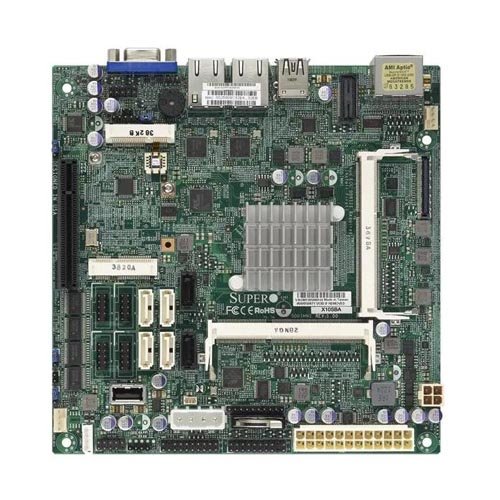

1. Intel® Celeron J1900 (10W, 4C)
2. Intel® Silvermont microarchitecture 22nm System-on-Chip
3. Up to 8GB 1333MHz DDR3L Non-ECC SO-DIMM in 2 socket
4. 1 PCI-E x2, 1 Mini-PCI-E slot and 1 mSATA slot, 2 SATA 2.0, 4 SATA 3.0 (RAID 0, 1, 10)
5. Intel® HD Graphics with HDMI, Display port, and VGA
6. Intel® i210AT dual port GbE LAN
7. 1 USB 3.0 port and 5 USB 2.0 ports
8. 4 COM ports, 1 DOM power connector
9. 12V DC or ATX power source

₹25,914

Add to cart

Quick View

33% Off

Supermicro X11SSH-TF Motherboard mATX f/ up to Xeon E3-1200v5 MBD-X11SSH-TF-O

Highlights:

1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. Expansion slots: 1 PCIe 3.0 x8, 1 PCIe 3.0 x2 (in x4)
5. M.2 NGFF connector M.2 Interface: SATA and PCIe 3.0 x4 Form Factor: 2260 Key: M-Key
6. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
7. Dual 10GBase-T LAN with Intel® X550
8. I/O: 1 VGA, 2 COM, TPM header
9. 2 SuperDOM with built-in power
10. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

₹47,647

Add to cart

Quick View

33% Off

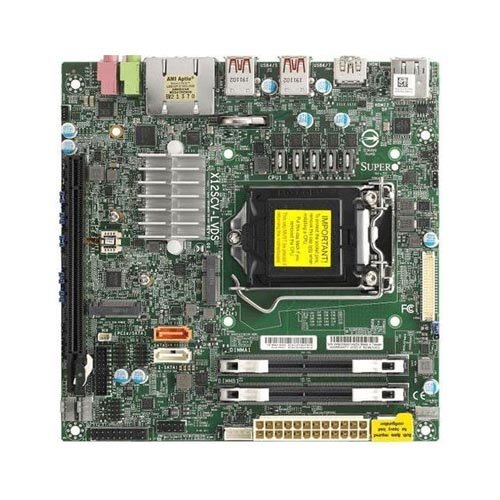

Supermicro X12SCV-LVDS Motherboard Mini-ITX Single Socket LGA-1200 (Socket H5) for Intel Xeon W-1200, 10th Gen Intel Core i9/i7/i5/i3 Processors MBD-X12SCV-LVDS-O

Highlights:

1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
2. Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
3. Intel® W480E
4. Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
5. 1 PCIe 3.0 x16 slots (16/NA or 8/8) 1 M.2 M-Key PCIe 3.0 x4, 2242/2280 1 M.2 E-Key CNVi/PCIe 3.0 x1/USB, 2230
6. Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
7. 2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port, 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

₹34,551

Add to cart

Quick View

29% OffOut Of Stock
