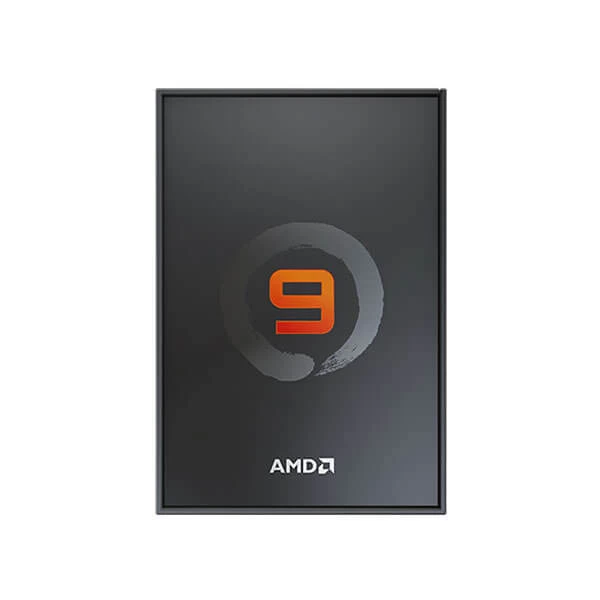

AMD Ryzen 9 7900X Desktop Processor 100-100000589WOF
Overview :
Ryzen 9 7900X – desktop processor produced by AMD for socket AM5 that has 12 cores and 24 threads. The base clock frequency of the CPU is 4700 MHz, but due to Turbo Core technology, it can perform up to 5600 MHz. The size of the L3 cache is 64 MB. Please note that this chip has integrated graphics AMD Radeon Graphics.
Specification :
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 9 Desktop Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| # of CPU Cores | 12 |
| Multithreading (SMT) | Yes |
| # of Threads | 24 |
| Max. Boost Clock | Up to 5.6GHz |
| Base Clock | 4.7GHz |
| L1 Cache | 768KB |
| L2 Cache | 12MB |
| L3 Cache | 64MB |
| Default TDP | 170W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | X670E |
| X670 | |
| B650E | |
| B650 | |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 9/27/2022 |
| *OS Support | Windows 11 – 64-Bit Edition |
| Windows 10 – 64-Bit Edition | |
| RHEL x86 64-Bit | |
| Ubuntu x86 64-Bit | |
| *Operating System (OS) support will vary by manufacturer. | |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| Native PCIe® Lanes (Total/Usable) | 28/24 |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E : |
| AMD X670 : 12x Gen4 | |
| AMD B650E : 8x Gen4 | |
| AMD B650 : 8x Gen4 | |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 1x1R : 5200 MT/s |
| 1x2R : 5200 MT/s | |
| 2x1R : 3600 MT/s | |
| 2x2R : 3600 MT/s | |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| GPU Base | 400 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Product IDs | |
| Product ID Boxed | 100-100000589WOF |
| Product ID Tray | 100-000000589 |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology |
| AMD Ryzen™ Technologies |
