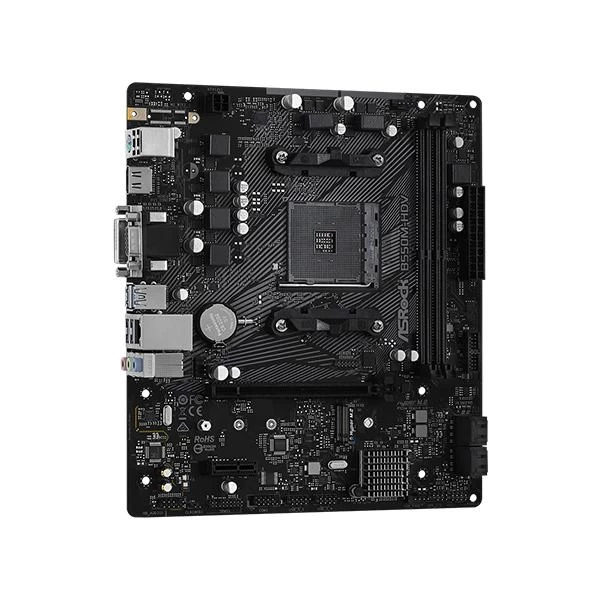

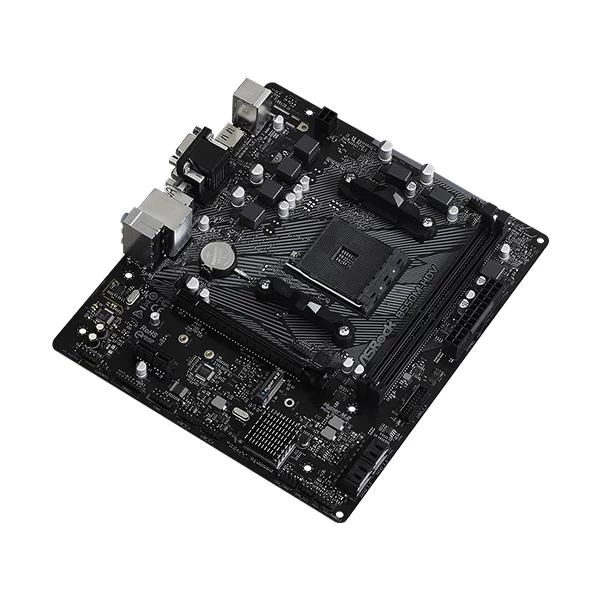

ASRock B550M-HDV Motherboard (AMD Socket AM4/3rd Gen Ryzen Series CPU/Max 64GB DDR4 4600MHz Memory)
Overview :
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 6 Power Phase Design
- Supports DDR4 4600 (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
Specification :
| Unique Feature | ASRock Super Alloy |
| – Premium 50A Power Choke | |
| – Sapphire Black PCB | |
| – High Density Glass Fabric PCB | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | – Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* |
| – 6 Power Phase design | |
| *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. | |
| Chipset | – AMD B550 |
| Memory | – Dual Channel DDR4 Memory Technology |
| – 2 x DDR4 DIMM Slots | |
| – AMD Ryzen series CPUs (Matisse) support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
| – AMD Ryzen series APUs support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
| – Max. capacity of system memory: 64GB** | |
| – Supports Extreme Memory Profile (XMP) memory modules | |
| – 15μ Gold Contact in DIMM Slots* | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| – Supports “Plug and Play” | |
| – ACPI 5.1 compliance wake up events | |
| – Supports jumperfree | |
| – SMBIOS 2.3 support | |
| – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment | |
| Graphics | – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| – DirectX 12, Pixel Shader 5.0 | |
| – Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| – Three graphics output options: D-Sub, DVI-D and HDMI | |
| – Supports Triple Monitor | |
| – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz | |
| – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz | |
| – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) | |
| – Supports HDR (High Dynamic Range) with HDMI 2.1 | |
| – Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports | |
| – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port | |
| – Supports Microsoft® PlayReady | |
| *Actual support may vary by CPU | |
| **The Max shared memory 16GB requires 32GB system memory installed. | |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
| – Supports Surge Protection | |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| – Realtek RTL8111H | |
| – Supports Wake-On-LAN | |
| – Supports Lightning/ESD Protection | |
| – Supports Energy Efficient Ethernet 802.3az | |
| – Supports PXE | |
| Slots | AMD Ryzen series CPUs (Matisse) |
| – 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)* | |
| AMD Ryzen series APUs | |
| – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* | |
| – 1 x PCI Express 3.0 x1 Slot | |
| *Supports NVMe SSD as boot disks | |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| – 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)* | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| Connector | – 1 x SPI TPM Header |
| – 1 x COM Port Header | |
| – 1 x Chassis Intrusion and Speaker Header | |
| – 1 x CPU Fan Connector (4-pin)* | |
| – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** | |
| – 1 x 24 pin ATX Power Connector | |
| – 1 x 4 pin 12V Power Connector | |
| – 1 x Front Panel Audio Connector | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. | |
| CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port |
| – 1 x D-Sub Port | |
| – 1 x DVI-D Port | |
| – 1 x HDMI Port | |
| – 2 x USB 2.0 Ports (Supports ESD Protection) | |
| – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock XFast LAN | |
| UEFI | |
| – ASRock Full HD UEFI | |
| – ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield |
| – 2 x SATA Data Cables | |
| – 1 x Screw for M.2 Socket | |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis Fans |
| – Fan Tachometer: CPU, Chassis Fans | |
| – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans | |
| – Fan Multi-Speed Control: CPU, Chassis Fans | |
| – CASE OPEN detection | |
| – Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore | |
| Form Factor | – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| – Solid Capacitor design | |
| OS | – Microsoft® Windows® 10 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
