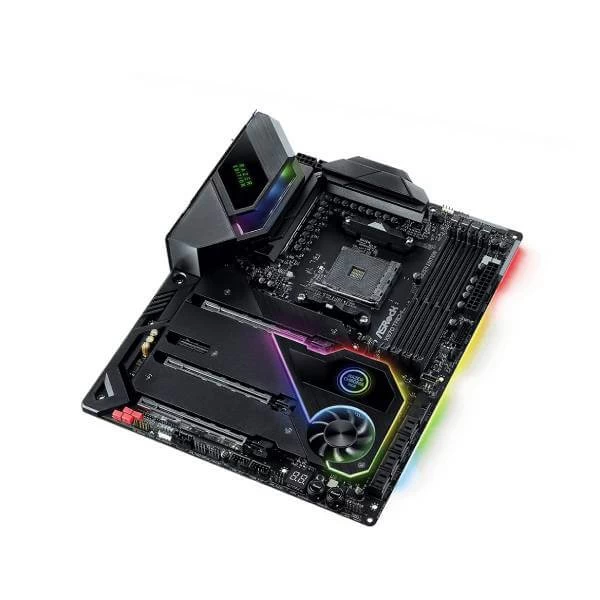

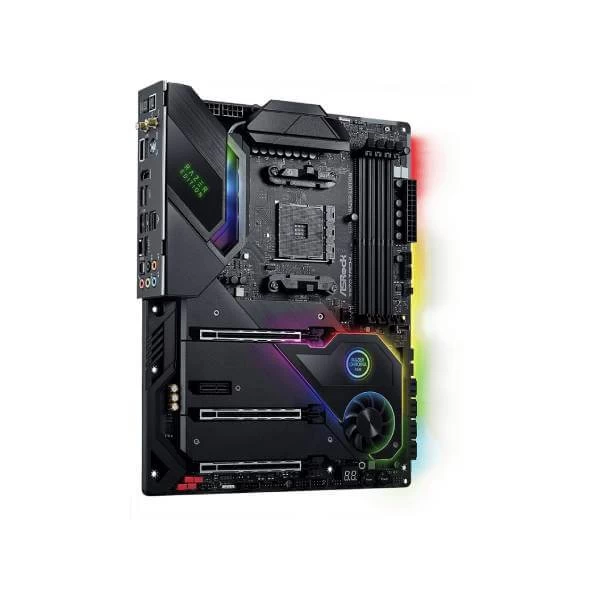

ASRock X570 TAICHI RAZER Edition AM4 AMD X570 ATX AMD Motherboard
Overview :
- AMD X570
- Supports AMD AM4 socket Ryzen 2000, 3000, 4000 and 5000 series processors
- AMD Ryzen series CPUs (Vermeer) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Matisse) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Renoir) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600 (OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
Specification :
| Brand | ASRock |
| Model | X570 TAICHI RAZER Edition |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD AM4 socket Ryzen 2000, 3000, 4000 and 5000 series processors |
| Chipsets | |
| Chipset | AMD X570 |
| Memory | |
| Number of Memory Slots | 4×288pin |
| Memory Standard | AMD Ryzen series CPUs (Vermeer) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* |
| AMD Ryzen series CPUs (Matisse) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series APUs (Renoir) support DDR4 4666 (OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600 (OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series APUs (Picasso) support DDR4 3466 (OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* | |
| * For Ryzen Series APUs (Picasso), ECC is only supported with PRO CPUs. | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 4.0 x16 | AMD Ryzen series CPUs (Vermeer) |
| 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen4x4 (PCIE4))* | |
| AMD Ryzen series CPUs (Matisse) | |
| 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen4x4 (PCIE4))* | |
| AMD Ryzen series APUs (Renoir) | |
| 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE4))* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) | |
| 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE4))* | |
| AMD Ryzen series APUs (Picasso) | |
| 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* | |
| 1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE4))* | |
| * Supports NVMe SSD as boot disks | |
| PCI Express x1 | 1 x PCI Express 4.0 x1 Slot |
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) |
| 15µ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage Devices | |
| SATA 6Gb/s | 8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4x4 (64Gb/s) (with Vermeer and Matisse) or Gen3x4 (32Gb/s) (with Renoir, Pinnacle Ridge and Picasso)* |
| 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s)* | |
| 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4x4 (64Gb/s)* | |
| * If M2_3 is occupied, PCIE4 slot will be disabled | |
| * Supports NVMe SSD as boot disks | |
| * Supports ASRock U.2 Kit | |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| * Actual support may vary by CPU | |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB. | |
| * The Max shared memory 16GB requires 32GB system memory installed. | |
| Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.1 | |
| Supports HDCP 2.3 with HDMI 2.1 Port | |
| * Picasso supports HDCP 2.2 with HDMI 2.0 Port | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port | |
| Supports Microsoft PlayReady | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Killer E3100G |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Killer AX1650x 802.11ax WiFi Module |
| Supports IEEE 802.11a/b/g/n/ax | |
| Supports Dual-Band (2.4/5 GHz) | |
| Supports Killer WiFi6 802.11ax (2.4Gbps) | |
| 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports MU-MIMO | |
| Supports Killer LAN Software | |
| Supports Killer DoubleShot Pro | |
| Bluetooth | Supports Bluetooth 5.1 High speed class II |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Ports |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) | |
| 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| * Ultra USB Power is supported on USB_12 ports. | |
| * ACPI wake-up function is not supported on USB_12 ports. | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| 1 x Clear CMOS Button | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) | |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 2 x RGB LED Headers | |
| * Support in total up to 12V/3A, 36W LED Strip | |
| 2 x Addressable LED Headers | |
| * Support in total up to 5V/3A, 15W LED Strip | |
| 1 x CPU Fan Connector (4-pin) | |
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| * CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| * CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. | |
| 1 x Front Panel Audio Connector (15µ Gold Audio Connector) | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) | |
| 1 x Dr. Debug with LED | |
| 1 x Power Button with LED | |
| 1 x Reset Button with LED | |
| 1 x Clear CMOS Button | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
