ASUS ROG Ryuo 240 all-in-one liquid CPU cooler with color OLED
Overview :
- 1.77” color OLED for real-time system stats and personalized logos or animations
- ROG-designed radiator fans for optimized airflow and static pressure
- LiveDash one-stop control center for lighting and OLED display
- Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
- Styled to complement ROG motherboards, at the center stage of your build
- Reinforced, sleeved tubing for increased durability
ROG Ryuo is a series of high-performance CPU liquid coolers designed for compact and mid-sized gaming builds. As the first CPU coolers from ROG, the Ryuo series brings the performance, features and design details you expect from ROG to a vital part of your gaming system. Featuring an embedded 1.77-inch LiveDash color OLED display that enables monitoring of real-time system stats as well as displaying personalized image or animation, ROG Ryuo lets you ensure your system both runs and looks its best. Together with Aura Sync support for harmonized RGB lighting effects, ROG Ryuo coolers deliver stunning aesthetics along with game-changing performance.
LiveDash OLED
ROG Ryuo is the world’s first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.
*Hardware monitoring feature is optimized for ASUS motherboards.
** Supports JPEG and GIF images sized 160 x 128 pixels
- Hardware monitoring
- Custom logo
Complete LiveDash customizability
The LiveDash software utility lets you easily customize ROG Ryuo’s LiveDash OLED display and RGB lighting effects. Select which system stats to monitor, choose personalized GIFs and images to display, and control RGB lighting from an intuitive interface that arranges settings in a step-by-step flow from top to bottom.
Subtle, striking, sleek
Infused with Aura RGB lighting, Ryuo adds a subtle glow that helps to highlight the CPU as the heart of any build. The lighting color and effects can be customized to match the OLED display and system colors for a unified look that’s totally your own.
- Static
- Breathing
- Strobing
- Rainbow
- Color cycle
- Flash & dash
PERFECT SYNCHRONIZATION
The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software provides complete control of lighting across all compatible devices, so you can dial in the vibe you want to display quickly and easily.
COOL TO THE CORE

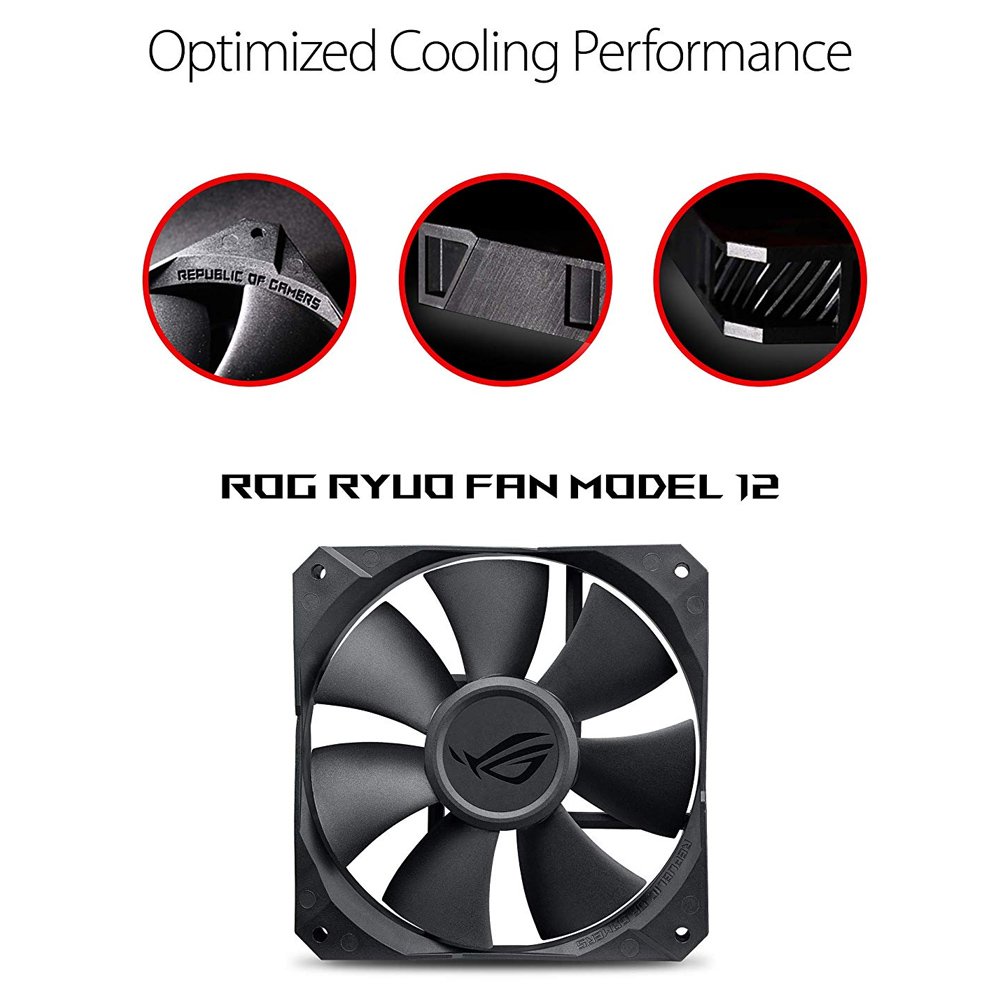

Optimized fan design
The ROG radiator fan is specifically tuned to deliver optimum performance with Ryuo radiators, generating 81CFM/5.0mm H2O for superior cooling efficiency.
Airflow (1.014x Greater)
ROG radiator fan : 81 CFM
Other AIO products : 70.69 CFM
Static Pressure (1.07x Higher)
ROG radiator fan : 5.00 H20
Other AIO products : 4.65 H20
Improved pump design
ROG Ryuo is equipped with the latest cooling-plate design featuring micro-channels that provide more thermal dissipation area for processor heat. This innovative feature reduces thermal resistance for more efficient performance and cooler temps.
Four-pin PWM pump and fan control
With four-pin PWM control for both the pump and radiator fans, ROG Ryuo delivers precise speed control for the perfect balance of performance and acoustics in every scenario.
Extended compatibility
ROG Ryuo is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.
CPU socket support
Intel : LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD : AM4, TR4*
*the mounting bracket is bundled with TR4 processor package
Specification :
| Water Block | Water Block Dimension: 80 x 80 x 45 mm |
| Block Material (CPU plate): Copper | |
| CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066；AMD: AM4, TR4* | |
| Radiator | Radiator Dimension: 272 x 121 x 27 mm |
| Radiator Material: Aluminum | |
| Tube: Sleeved Rubber tube | |
| Tube Length: 380 mm | |
| Fan | Fan: 2 x ROG RYUO FAN Model 12 |
| Fan size: 2 Fan Slots (120mm) | |
| Fan Dimension: 120 x 120 x 25 mm | |
| Fan Speed: 800 ~ 2500 RPM /- 10 % | |
| Fan Static Pressure: 5.0 mmH2O | |
| Fan Air Flow: 80.95 CFM / 137.5 m3h | |
| Fan Noise: 37.6 dB(A) | |
| Control Mode: PWM | |
| Special Features | OLED Display: 1.77 ” Full Color OLED |
| AURA Sync Support: Yes | |

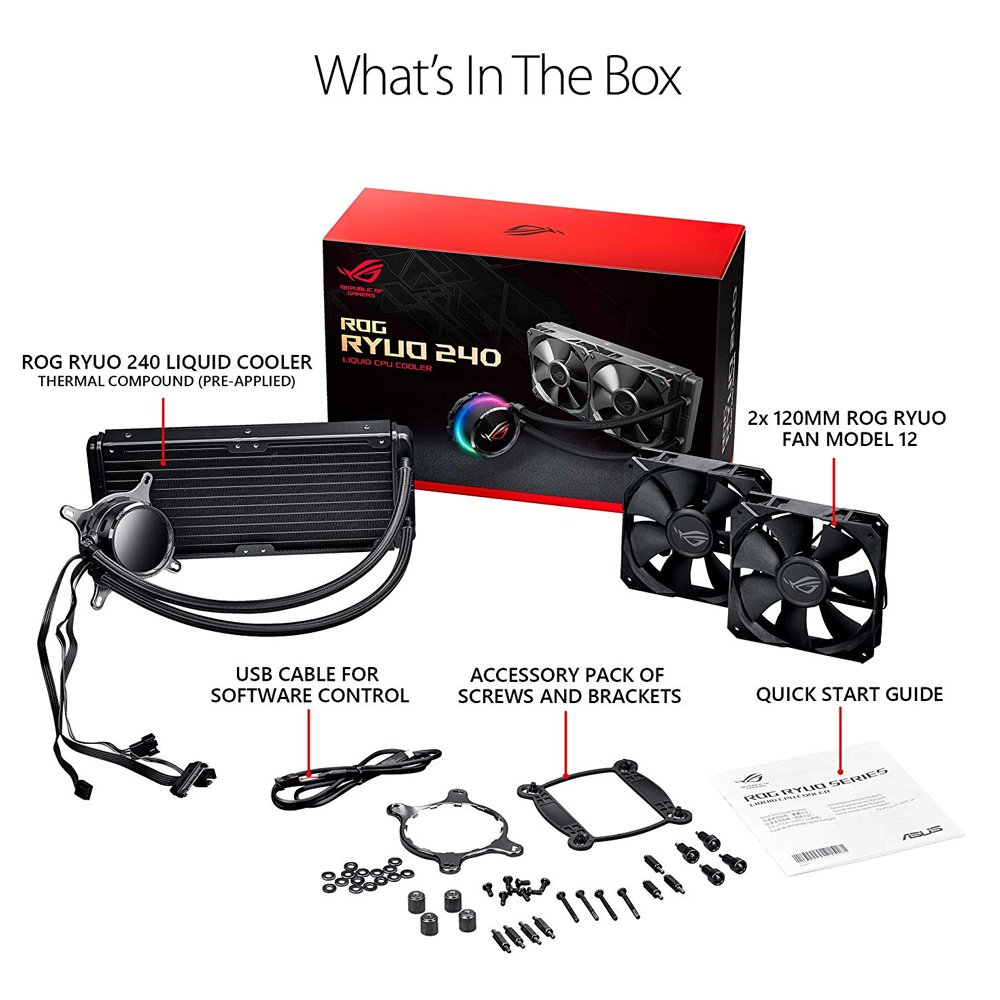

| Package Content | ROG RYUO 240 Liquid Cooler |
| Accesory Pack of Scews and brackets | |
| 2 x 120mm ROG Ryuo Fan Model 12 | |
| USB Cable for Software control | |
| Thermal compound (pre-applied) | |
| Quick Start Guide | |
| Compatibility | Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066 |
| AMD: AM4, TR4* | |
| Warranty | Warranty: 3 years |
| Note | |
| *The mounting bracket is bundled with TR4 CPU Package, not in the RYUO’s package | |
| ** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding | |
| *** Hardware monitor and fan control is optimized for ASUS motherboards | |
| **** for control radiator FAN from the Y-Cable on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler |
