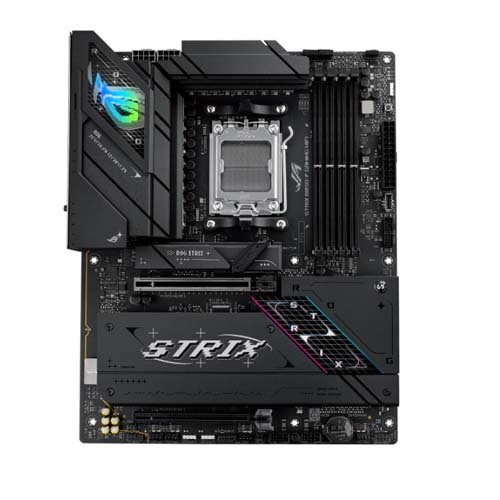

Overview

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

Specifications

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  • * Refer to https://www.asus.com/support/d… for CPU support list.
• Chipset: AMD B850 Chipset
• Memory
  • 4 x DIMM slots, max. 192GB, DDR5
  • Supports up to 8000 MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
  •  ECC and Non-ECC, Un-buffered DIMM
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  • ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x DisplayPort*
  • 1 x HDMI™ port**
  • – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • * Supports max. 8K@30Hz as specified in DisplayPort 1.4
  • ** Supports 4K@60Hz as specified in HDMI 2.1
  • *** VGA resolution support depends on processors’ or graphic cards’ resolution.
• Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • 1 x PCIe 5.0 x16 slot with Q-Release Slim
  • AMD Ryzen™ 8000 Series Desktop Processors
    • 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
  • AMD B850 Chipset
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)**
  • * Specifications vary by CPU types.
  • ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
  • – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/d… for the list of supported peripherals.
• Storage
  • Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  • AMD Ryzen™ 7000 & 9000 Series Desktop Processors
    • M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode)
    • M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode)
    • M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
  • AMD B850 Chipset
    • M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
    • M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
    • 2 x SATA 6Gb/s ports
  • * Specifications vary by CPU types.
  • ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
  • AMD RAIDXpert2 Technology
    • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
    • Ryzen™ 8000 Series Processors: RAID 0/1
    • Ryzen™ 7000 Series Processors: RAID 0/1/10
• Ethernet: 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7*
  • 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  • For Windows 10, only Wi-Fi 6 is supported.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
• USB

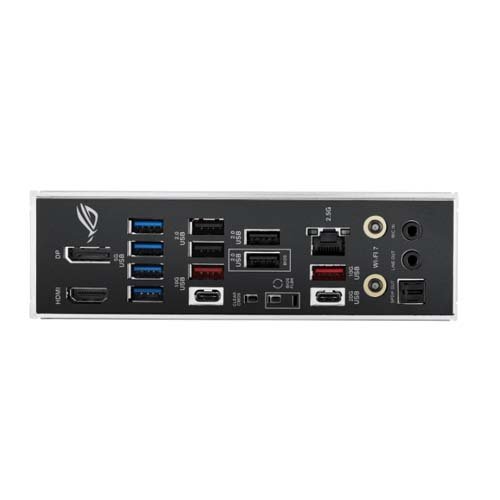

  • Rear USB (Total 12 ports)
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 3 x USB 10Gbps ports (2 x Type-A 1 x USB Type-C®)
    • 4 x USB 5Gbps ports (4 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Form Factor: ATX (30.5 x 24.4 cm)
• Warranty: 36 months
