ASUS ROG Strix Helios GX601 E-ATX Mid Tower Black Cabinet With Tempered Glass Side Panel
Overview :
- Premium design & aesthetics: Made for showcase builds with three tempered-glass panels, brushed-aluminum frame and integrated Aura Sync RGB front lighting
- Clean build made easy: A multifunction cover with graphics card holders, a PSU shroud and a translucent rear cable cover offer effortless cable management
- Versatile GPU mounting: Install three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket
- Ready for serious cooling: Supports an up to EATX motherboard, with room for 420mm front radiators and water-cooling pump and reservoir
- Advanced I/O panel: USB 3.1 Gen 2 Type-C™ port, four USB 3.0 ports, an RGB-lighting control button and a fan-speed control button
- Comfortable case handles: Easily carry your prized build to LAN parties with ergonomic and stylish fabric handles

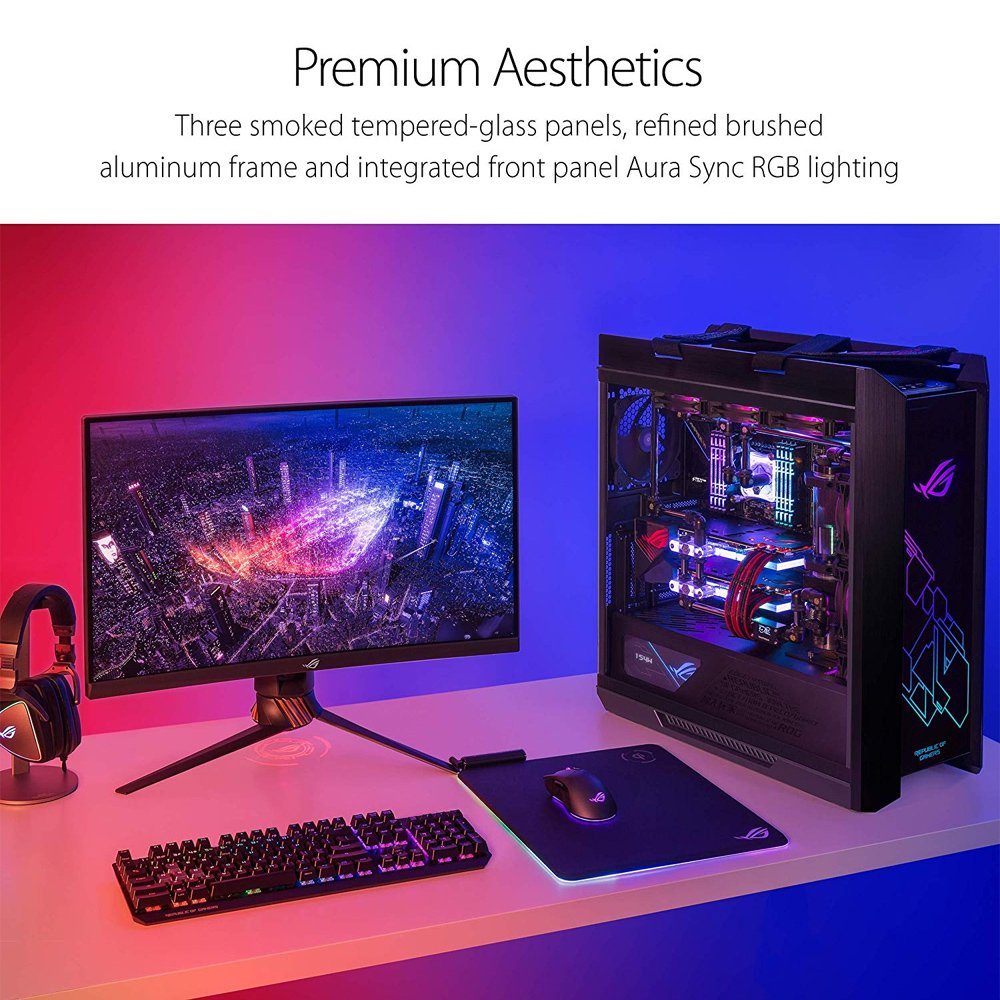

PREMIUM DESIGN & AESTHETICS
ROG Strix Helios is made for showcase builds with three 4mm, smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A stunning display of dynamic RGB lighting is integrated into the front panel to outshine the competition.
AURA SYNC RGB LIGHTING
Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, ROG Strix Helios can cast millions of colors and a range of effects that can be synchronized with a vast ecosystem of components to augment your build.

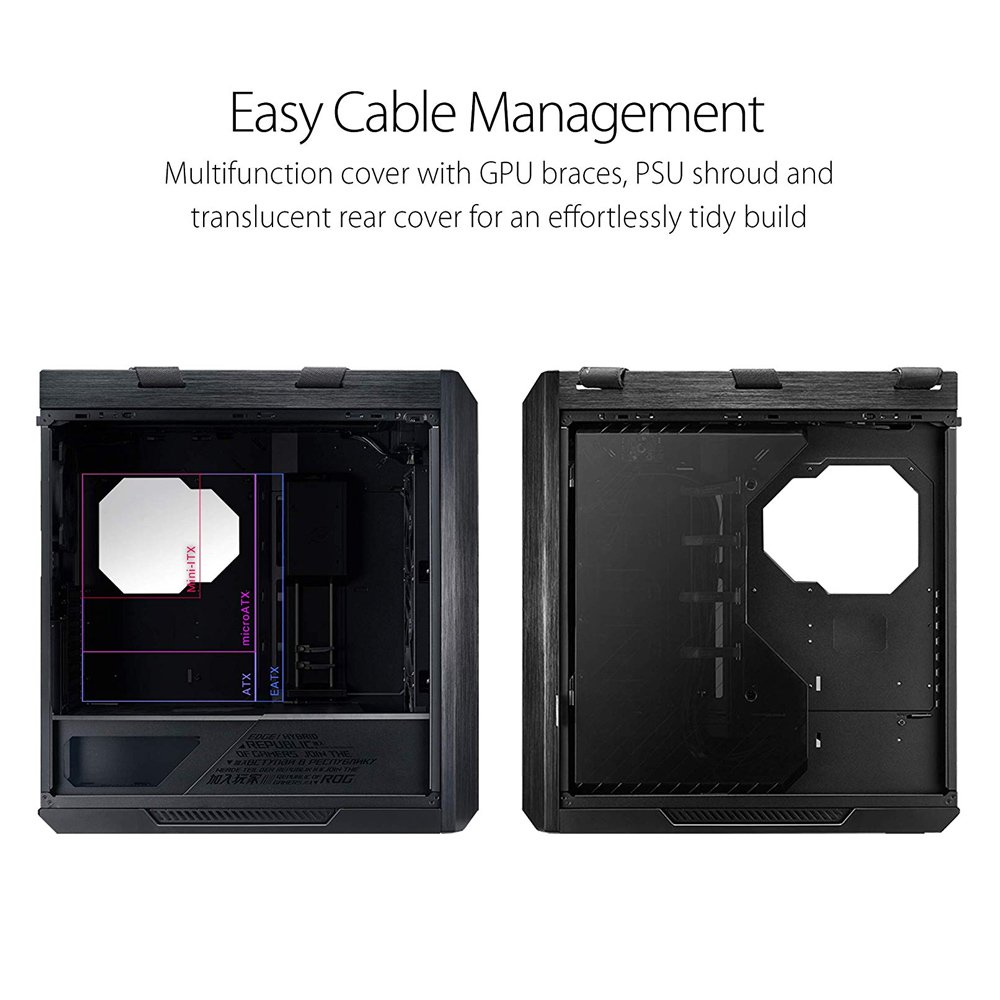

EFFORTLESS CABLE MANAGEMENT
Keep your build sharp and tidy with flexible covers and a comprehensive cable-management system.
Multifunction Cover
A multifunction cover with GPU braces cleverly hides cabling, provides sturdy support to graphics cards and allows for an SSD or ROG Aura Terminal to be mounted for display. Its position can be adjusted to accommodate an ATX or EATX motherboard.
EASY INSTALLATION & MAINTENANCE
ROG Strix Helios is designed with multiple easy installation mechanisms to provide the smoothest building experience, even for DIY novices. Keeping your rig clean is made easy with built-in dust filters and easy access to all areas.
Panel Release Buttons
One push of the release buttons at the rear of the case lets you swing down the side panels for instant, tool-less access to the interior. The tempered-glass panels are bottom-hinged, meaning they will remain supported at an angle until you’re ready to detach them completely.

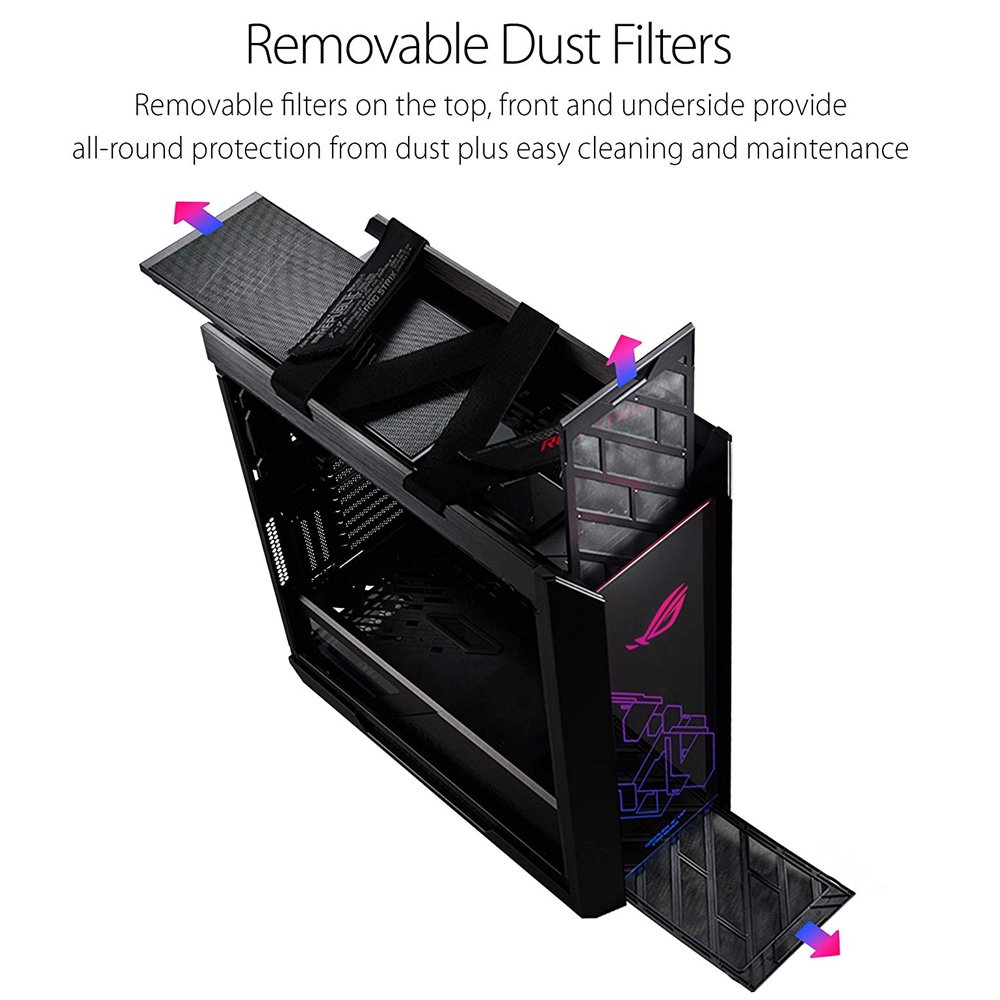

Dust Filters
Removable filters on the top, front and underside provide all-round protection from dust, and make short work of cleaning and maintenance.

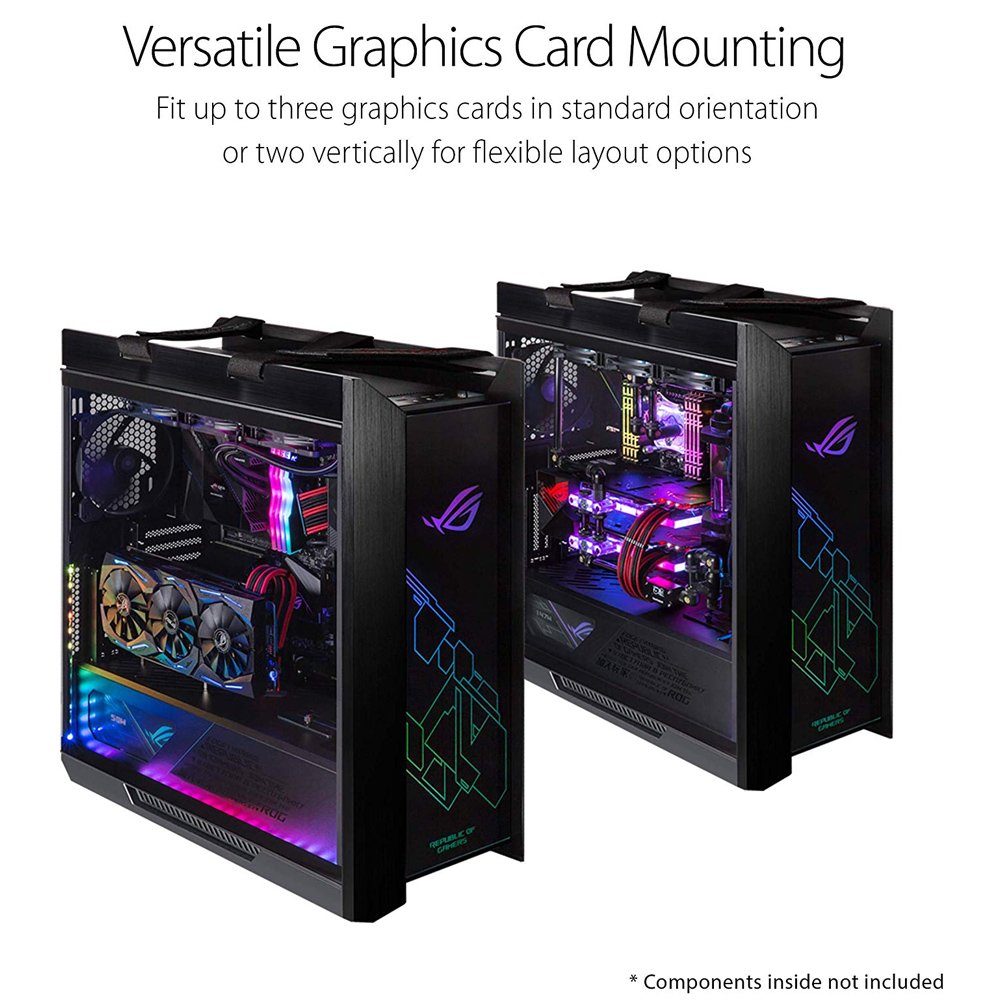

VERSATILE GRAPHICS CARD MOUNTING
Fit up to three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket.

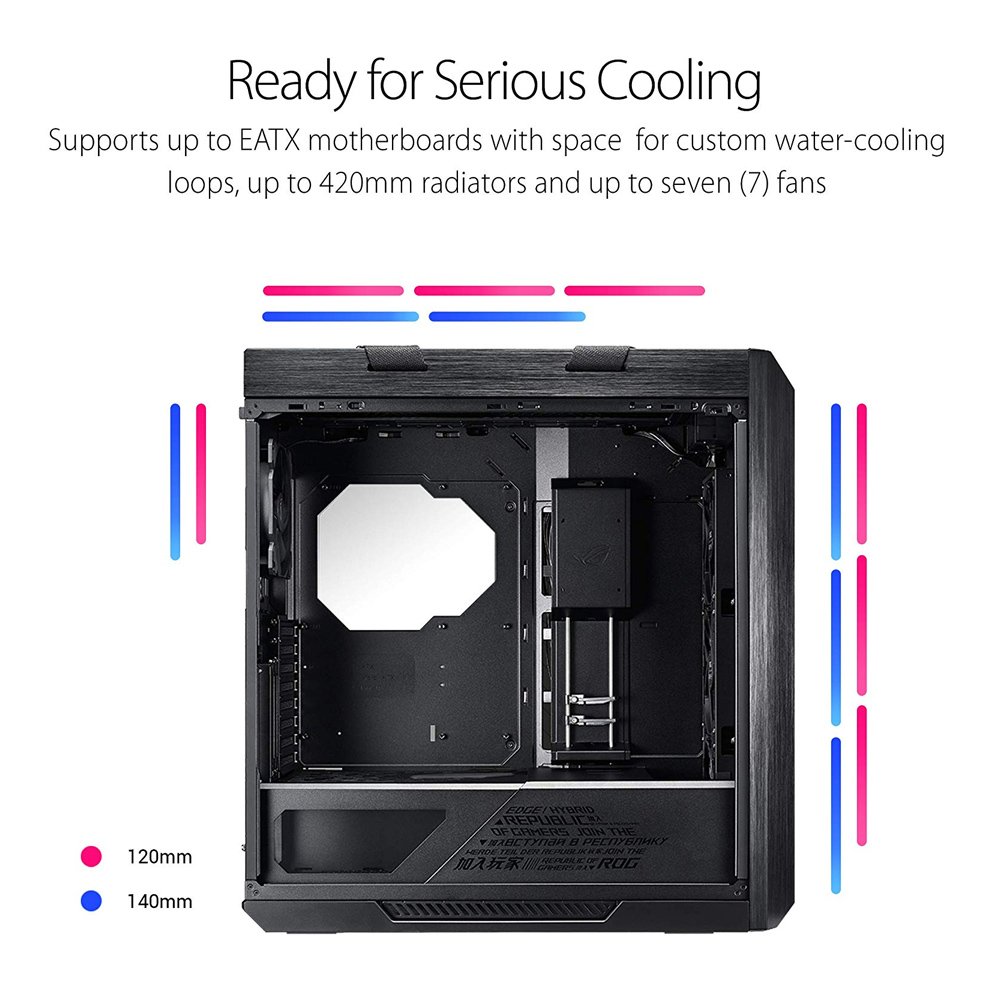

READY FOR SERIOUS COOLING
Built to perform and primed for expansion, ROG Strix Helios can accommodate an up to EATX motherboard and offers ample space for hardcore water-cooling setups. With support for up to 420mm front and 360mm top radiators, room is also reserved for installing a water-cooling pump and reservoir.
ADVANCED I/O PANEL
The I/O panel is loaded with connectivity, including a reversible USB 3.1 Type-C™ port. It also features dedicated fan speed and RGB lighting controls for making adjustments on-the-fly.

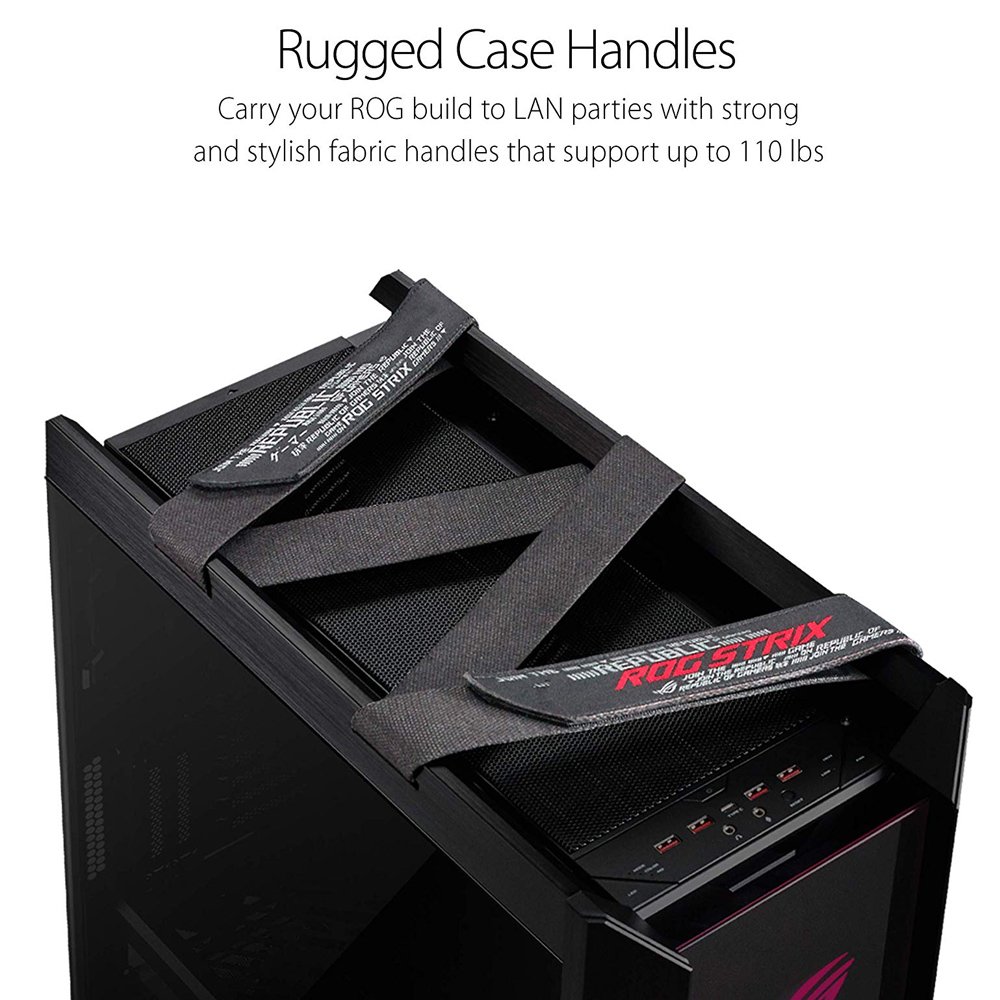

COMFORTABLE CASE HANDLES
Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg.
Specification :
| Dimensions | 250 x 565 x 591 mm (WxDxH) |
| Case Size | ATX Mid Tower |
| Form Factor | ATX/micro ATX/Mini ITX/EATX (12”x10.9”) |
| Drive Bays | 2 x Int x 2.5”/3.5” Combo Bay |
| 4 x Int x 2.5” Bay | |
| System Fan Support | Pre-installed Fans |
| Front: 3 x 140mm | |
| Rear: 1 x 140mm | |
| Expansion Slots | 8 2 (additional vertical) |
| Weight | N.W. 18 kg |
| Color | Black |
| Front I/O Ports | 1 x USB 3.1 Gen 2 (Type-C) |
| 4 x USB 3.1 Gen 1 | |
| 1 x Headphone | |
| 1 x Microphone | |
| LED & Fan Control Buttons | |
| Power Supply | ATX |
| Note | Cooling Support |
| Front: 3 x 140mm/ 3 x 120mm (Radiator Fan Thickness: Max. 90mm) | |
| Top: 2 x 140mm/ 3 x 120mm (Radiator Fan Thickness: Max. 60mm) | |
| Rear: 1 x 140mm/120mm | |
| Radiator Support | |
| Front: 120, 140, 240, 280, 360, 420 mm | |
| Top 120, 140, 240, 280, 360 mm | |
| Rear: 120, 140mm | |
| Maximum GPU Length: 450 mm | |
| (Riser Cable above 200mm in length is required for one GPU install in vertical position) | |
| Maximum CPU Cooler Height: 190 mm | |
| Maximum PSU Length: 220 mm | |
| Removable Dust Filters: Front: Slide-Out / Top: Slide-Out / Bottom: Slide-Out | |
| Cable Routing: Max. 33 mm | |
| 3.5”/2.5” Drive Bays: Up to 4pcs (Pre-install 2pcs) | |
| 2.5” Drive Bays: Up to 9pcs (Pre-install 4 1pcs) |
