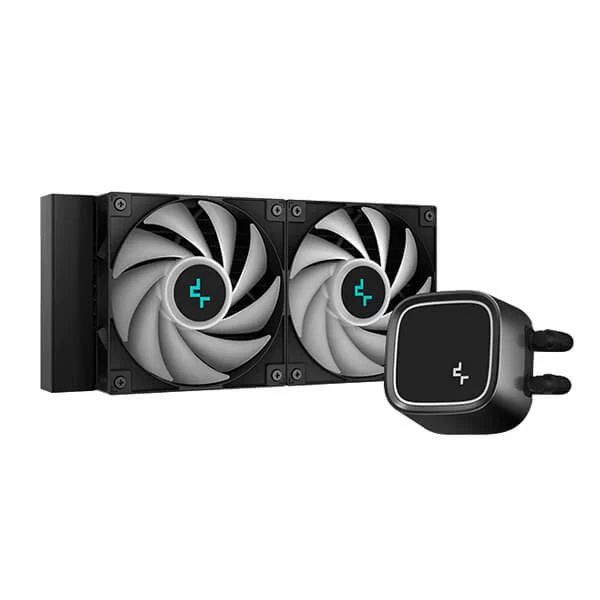

Deepcool Gammaxx LE520 ARGB 240mm CPU Liquid Cooler (Black) R-LE520-BKAMMN-G-1
Overview :
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

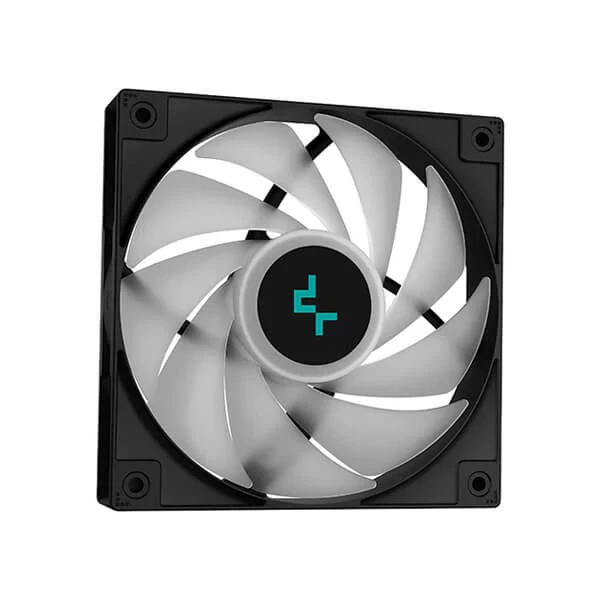

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
Anti-leak Technology
The LE520 liquid cooler features DeepCool’s patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
Simple and Secure
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Specification :
| Model Number | R-LE520-BKAMMN-G-1 |
| Net Weight | 1238 g |

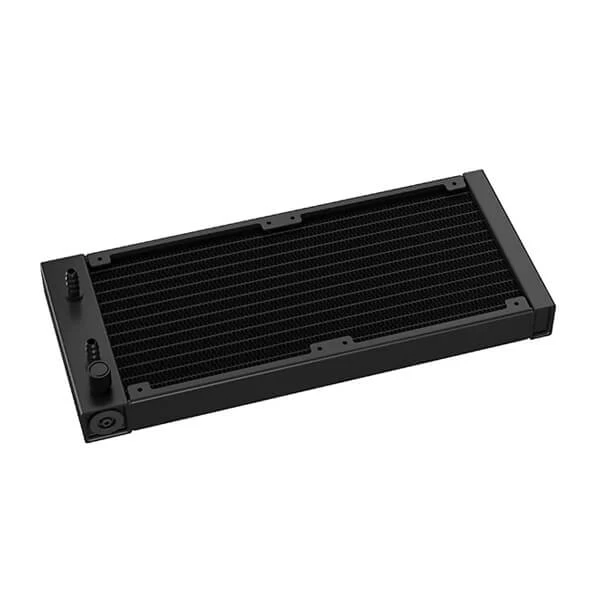

| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L×W×H) |
| Pump Dimensions | 91×80×52 mm(L×W×H) |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2250RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin( 5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 2.1 W（FAN×2） |
| Warranty | 3 Years |
