Fractal Design Meshify 2 Dark Tempered Glass Cabinet FD-C-MES2A-02
Overview :
Detachable front filter
New front nylon filter that can be removed for increased airflow
New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
Transformable interior design utilizing a movable wall for enhancing custom builds
The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
Easily holds large motherboards up to and including 285 mm E-ATX
Open and interchangeable
Remove the entire top to build and route with zero hindrance.
Nexus 2 fan hub
Ultra-slim Nexus 2 fan hub connects up to three PWM fans and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Technical Details
Brand : Fractal Design
Model : FD-C-MES2A-02
Specifications
3.5″/2.5″ Universal drive mounts : 6 included, 14 positions total 1 Multibracket
Dedicated 2.5″ drive mounts : 2 included, 4 positions total
Expansion slots : 7 2
Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts : 9x 120/140 mm
Front fan : 3x 120/140 mm (2x Dynamic X2 GP-14 included)
Top fan : 3x 120/140 mm
Rear fan : 1x 120/140 mm (1x Dynamic X2 GP-14 included)
Bottom fan : 2x 120/140 mm
Dust filters : Top, front and bottom
Fixed velcro straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD, SSD and PSU brackets

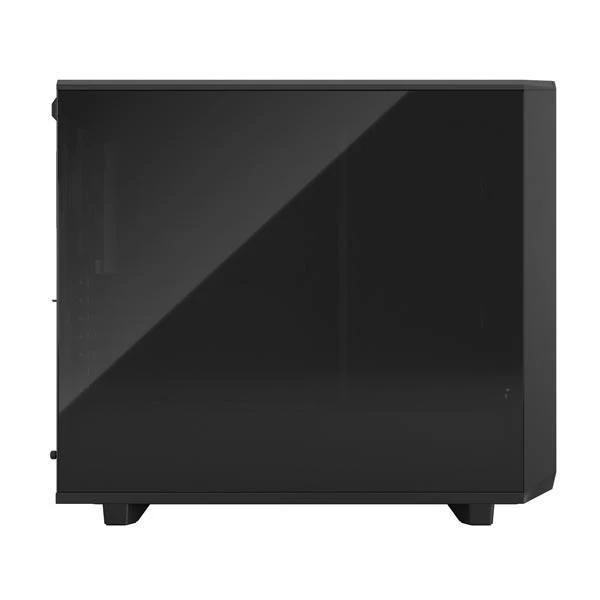

Left side panel : Tempered glass dark tint

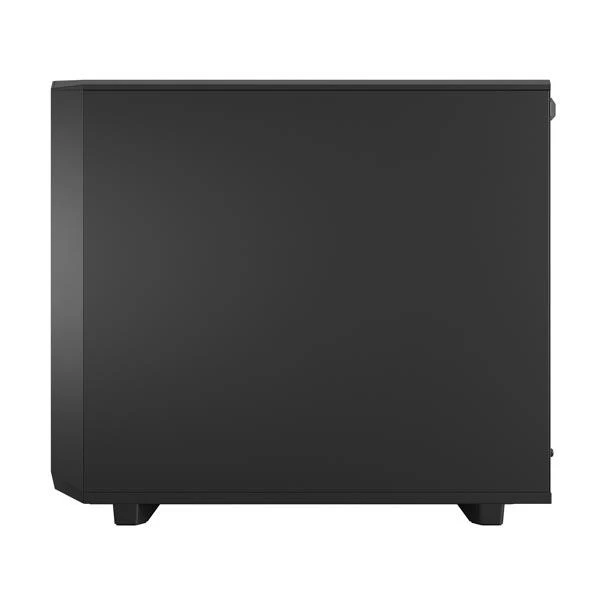

Right side panel : Steel
Motherboard compatibility : E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
Case dimensions (LxWxH) : 542 x 240 x 474 mm
Net weight : Solid: 10.1 kg
