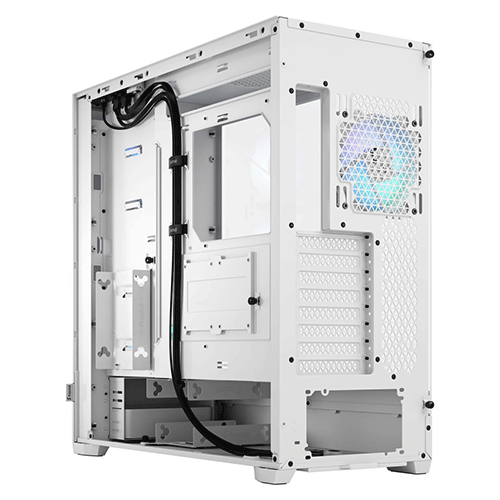

Fractal Design Pop XL Air RGB (E-ATX) Mid Tower Cabinet White FD-C-POR1X-01
Overview
Pop XL Air
Experience a fusion of style and function with Pop Series. Pop XL Air melds precision engineering with dynamic design, while offering the space and flexibility of its generous format.
• Accommodates E-ATX (up to 280 mm) / ATX / mATX / Mini ITX Motherboards
• Easily mounted tempered glass side panel lets you showcase your components
• Up to four HDDs and six SSDs (or three HDDs and five SSDs with one optical bay in use)
A case of attitude
- Unique, honeycomb patterned mesh front creates a striking visual effect
- The easy-to-clean front mesh acts as a dust filter while allowing high airflow
A hidden compartment
Two neatly concealed 5.25” bays with storage drawer and magnetic cover
USB-C ready I/O panel with ARGB
Features a new ARGB controller and power LEDs
Easily installed USB-C module available separately
Flexible storage support
- Three ultra-versatile storage trays support a 3.5” and a 2.5” drive simultaneously. A dedicated SSD bracket for 2x 2.5” is also included
- Enjoy multiple tie-down points, pre-mounted cable ties and extra-large pass-through holes for a clean interior
Specifications
| Model | FD-C-POR1X-01 |
| Color | White |
| Dedicated 2.5″ drive mounts | 4 (2 included) |
| 5.25” drive mounts | 2 |
| Front interface | 2x USB 3.0, Audio, RGB controller |
| Front fan | 3x 120/ 2x 140 mm (3x Aspect 12 RGB included) |
| Rear fan | 1x 120/140 mm (1x Aspect 12 RGB included) |
| Cable routing grommets | No |
| Captive thumbscrews | HDD brackets, SSD brackets, side panels |
| Right side panel | Solid steel |
| Combined 3.5/2.5” drive mounts | 2 (3 Included) |
| Expansion slots | 8 |
| Total fan mounts | 6x 120 mm or 5x 140 mm |
| Top fan | 2x 120/140 mm |
| Dust filters | Top (perforated plastic), PSU (nylon), Front (perforated steel) |
| Fixed cable ties | Yes, 2 pcs |
| Left side panel | Tempered glass |
| Compatibility | |
| Motherboard compatibility | E-ATX up to 280 mm / ATX / mATX / Mini ITX |
| PSU max length | 205 mm |
| CPU cooler max height | 185 mm |
| Top radiator | Up to 280 mm |
| Cable routing space | 19 mm |
| Power supply type | ATX |
| GPU max length | 455 mm with front fan mounted |
| Front radiator | Up to 360 mm |
| Rear radiator | Up to 140 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 522 x 230 x 520 mm |
| Package dimensions (LxWxH) | 599 x 324 x 608 mm |
| Net weight | 9.65 kg |
| Gross weight | 11.32 kg |
| Other | |
| Package contents | Pop XL Air case, Accessory bag, User manual |
| Warranty | 2 Years |
