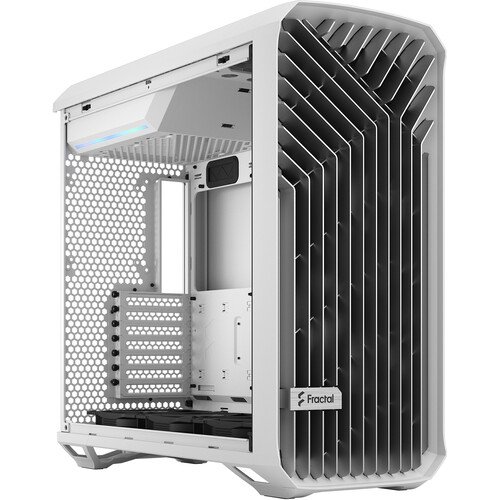

Fractal Design Torrent White TG Clear Tint Cabinet FD-C-TOR1A-03
Overview :
Torrent
Built to maximize cooling potential straight out of the box, the Torrent comes with a brand-new component layout and two custom-made 180 x 38 mm Dynamic PWM or Prisma RGB PWM fans. The Torrent is a perfect fit for anyone serious about high-end cooling – with or without a custom water loop.
Top-tier airflow
Designed for exceptional performance at controlled sound levels with included fan hub The 38 mm thick 180 mm fans leverage power, size, and thickness for massive air-moving capacity .Streamlined through and through for component breathing room and superlative airflow .
Let your system breathe
New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling Optional front and bottom nylon filters included, allowing the user to prioritize between dust filtering or even higher airflow Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling .
Streamlined inside and out
Front fan brackets allow for unblocked airflow to the larger fans while catering to standard radiator and fan sizes Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm Seven bridgeless expansion slots allow for extensive customization .
Quick start, clean finish
Comes with external cable straps for tidying up behind your computer New, pre-installed Nexus 9P Slim PWM fan hub Removable top bezel and cable guides with cable straps make for easy installation and cable management Two sturdy steel drive trays with vibration-damping rubber grommets for smooth, quiet and reliable operation Four dedicated SSD brackets included
Transparently easy
Seamless tempered glass panels (on TG models) with bolt-free top-latching mechanisms for easy handling Top mounted aerodynamic PSU shroud with integrated ARGB effects (TG versions only) Integrated support for a water-cooling reservoir on the motherboard tray .
Technical Details
Brand : Fractal Design
Model : FD-C-TOR1A-03
Technical Specs
Dedicated 3.5″ drive mounts : 2 (included)
Dedicated 2.5″ drive mounts : 4 (included)
Expansion slots : 7
Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, HD Audio
Total fan mounts : 7x 120/140 mm or 4x 180 mm
Front fan : 3x 120/140 mm or 2x 180 mm (2x Dynamic GP-18 included in standard version, 2x Prisma AL-18 included in RGB version)
Rear fan : 1x 120/140 mm
Bottom fan : 3x 120/140 mm or 2x 180 mm (3x Dynamic GP-14 PWM included in standard version, 3x Prisma AL-14 PWM included in RGB version)
Dust filters : Front, Bottom
Fixed cable straps : Yes
Cable routing grommets : Yes
Tool-less push-to-lock : Both side panels
Captive thumbscrews : HDD brackets, SSD brackets, Top panel, Bottom fan bracket
Left side panel : Steel or Tempered glass (RGB version: Tempered glass only)
Right side panel : Steel or Tempered glass (RGB version: Tempered glass only)
Motherboard compatibility : E-ATX / ATX / mATX / ITX / SSI-EEB / SSI-CEB
Power supply type : ATX
PSU max length : 230 mm
GPU max length : 461 mm total, 423 mm with front fan mounted
CPU cooler max height : 188 mm
Front radiator : Up to 360/420 mm, including 360×180 mm
Rear radiator : Up to 120/140 mm
Bottom radiator : Up to 360/420 mm (458 mm max length)
Cable routing space : 32 mm
Package dimensions (LxWxH) : 640 x 343 x 674 mm
