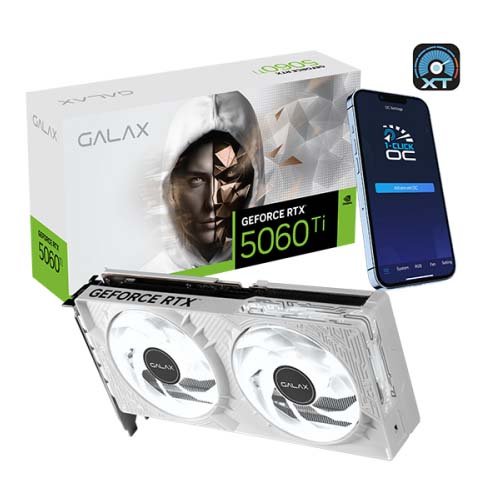

Galax RTX 5060 Ti 1-Click OC 8GB GDDR7 RGB White Gaming Graphics Card 56ISN8MDCQWH
Overview :
- Powered by the NVIDIA Blackwell Architecture and DLSS 4
- Dedicated Tensor Cores
- Dedicated RT Cores
- Microsoft DirectX® 12 Ultimate
- GDDR7 Graphics Memory
- NVIDIA DLSS 4
- NVIDIA® App
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready and NVIDIA Studio Drivers
- DisplayPort 2.1b, HDMI 2.1b
- VR Ready
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
Specifications
| Component | Details |
|---|---|
| CUDA Cores | 4608 |
| Boost Clock | 2587 MHz |
| 1-Click OC Clock | 2602MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC) |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 448 GB/sec |
| Interface | PCI Express 5.0 |
| Operating System | Windows 10/11 64-bit |
| Fan System | 2 x 92mm WINGS 3.0 with Fan Stop @ Idle |
| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Max Display Support | 4 Displays |
| Resolution Support | Up to 4K @ 480Hz, 8K @ 165Hz (with DSC) |
| Dimensions (With Bracket) | 247 × 131 × 40.6mm |
| Dimensions (Without Bracket) | 235 × 115.5 × 39.6mm |
