MSI GeForce RTX 4070 Ti SUPER 16G VENTUS 3X OC Graphics Card RTX-4070-TI-SUPER-16G-VENTUS-3X-OC
Overview :
WITH DLSS 3
Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
2640 MHz / 21 Gbps
16GB GDDR6X

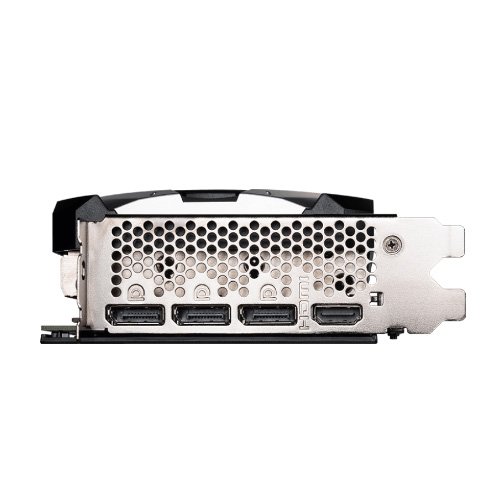

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

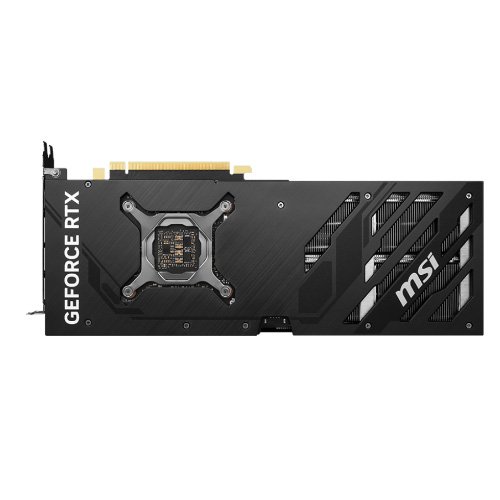

Reinforcing Backplate
Specification :
| MODEL NAME | GeForce RTX™ 4070 Ti SUPER 16G VENTUS 3X OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 Ti SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
| CUDA® CORES | Boost |
| MEMORY SPEED | 8448 Units |
| MEMORY | 21 Gbps |
| MEMORY BUS | 16GB GDDR6X |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 285 W |
| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 700 W |
| CARD DIMENSION (MM) | 308 x 120 x 52 mm |
| WEIGHT (CARD / PACKAGE) | 1107g / 1661g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
