Gigabyte X570 AORUS ELITE AMD X570 Motherboard
Overview :
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 12 2 Phases Digital VRM Solution with DrMOS
- Advanced Heatsink Design with Enlarge Heatsink
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel® Gigabit LAN with cFosSpeed Internet Accelerator
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
- Integrated I/O Shield Armor
- Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card
Specification :
| CPU | 1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | 1. AMD X570 |
| Memory | 1. 3rd Generation AMD Ryzen™ processors: |
| Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 2. 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: | |
| Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 4. Dual channel memory architecture | |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor: |
| 1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.0 version, HDCP 2.2, and HDR. | |
| Maximum shared memory of 16 GB | |
| Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only. | |
| Audio | 1. Realtek® ALC1200 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1-channel | |
| 4. Support for S/PDIF Out | |
| LAN | 1. Intel® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | Integrated in the CPU (PCIEX16): |
| · 3rd Generation AMD Ryzen™ processors: | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| · 2nd Generation AMD Ryzen™ processors: | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 | |
| Integrated in the Chipset (PCIEX4/PCIEX1): | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) | |
| * For 3rd Generation AMD Ryzen™ processors only. | |
| 2. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 | |
| * For 3rd Generation AMD Ryzen™ processors only. | |
| Multi-Graphics Technology | 1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. | |
| Storage Interface | Integrated in the CPU (M2A_SOCKET): |
| · 3rd Generation AMD Ryzen™ processors: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) | |
| · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Integrated in the Chipset (M2B_SOCKET): | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) | |
| * For 3rd Generation AMD Ryzen™ processors only. | |
| 2. 6 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, and RAID 10 | |
| USB | Integrated in the CPU: |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 2. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel | |
| * For 3rd Generation AMD Ryzen™ processors only. | |
| 3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers | |
| Chipset 2 USB 2.0 Hubs: | |
| 1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x water cooling CPU fan header | |
| 5. 2 x system fan headers | |
| 6. 2 x addressable LED strip headers | |
| 7. 2 x RGB LED strip headers | |
| 8. 1 x CPU cooler LED strip/RGB LED strip header | |
| 9. 2 x M.2 Socket 3 connectors | |
| 10. 6 x SATA 6Gb/s connectors | |
| 11. 1 x front panel header | |
| 12. 1 x front panel audio header | |
| 13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| 14. 2 x USB 3.2 Gen 1 headers | |
| 15. 2 x USB 2.0/1.1 headers | |
| 16. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 17. 1 x Clear CMOS jumper | |
| 18. 1 x Q-Flash Plus button | |

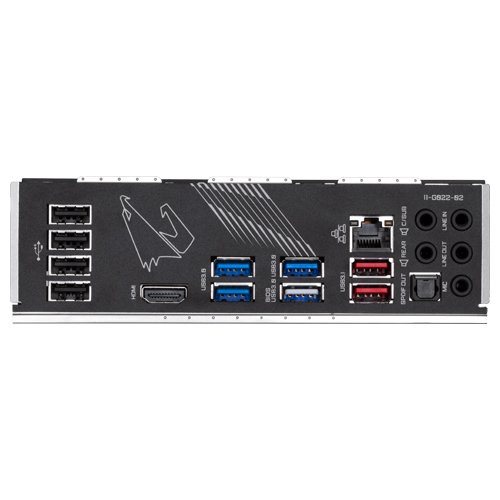

| Back Panel Connectors | 1. 4 x USB 2.0/1.1 ports |
| 2. 1 x HDMI port | |
| 3. 4 x USB 3.2 Gen 1 ports | |
| 4. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) | |
| * For 3rd Generation AMD Ryzen™ processors only. | |
| 5. 1 x RJ-45 port | |
| 6. 1 x optical S/PDIF Out connector | |
| 7. 5 x audio jacks | |
| I/O Controller | 1. iTE® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Overheating warning | |
| 6. Fan fail warning | |
| 7. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| 2. cFosSpeed | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
