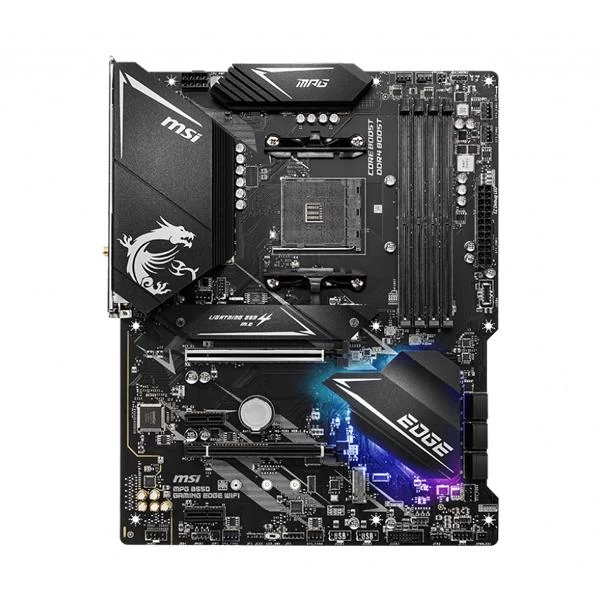

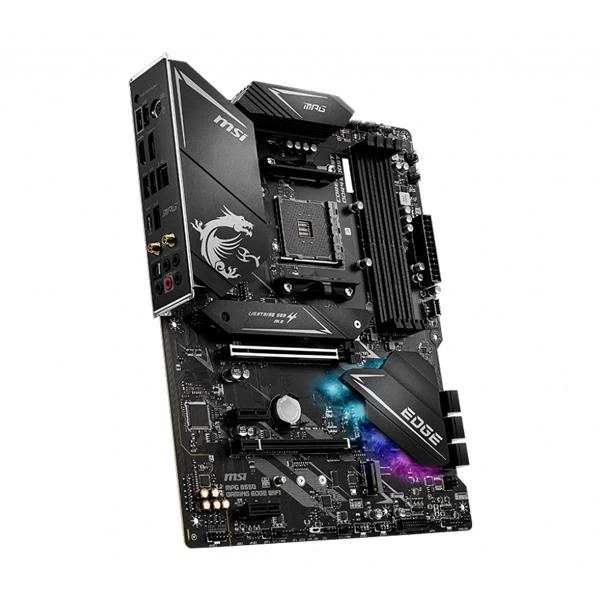

MSI MPG B550 Gaming Edge WIFI Motherboard
Overview :
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100 (OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: 10 2 1 Duet Rail Power Design, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Specification :
| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100 MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 5100 MHZ | |
| 1DPC 2R max speed 3866 MHZ | |
| 2DPC 1R max speed 4000 MHZ | |
| 2DPC 2R max speed 3600 MHZ | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 |
| 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 | |
| 2x PCIe 3.0 x1 slots | |
| 1. The supported specification depends on installed processor. | |
| 2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. | |
| Onboard Graphics | x HDMI port, supports a maximum resolution of 4096×2160 @24Hz 1 |
| 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1 | |
| Maximum shared memory of 16 GB | |
| 1. Available for the processor with integrated graphics. | |
| Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
| Storage | AMD B550 Chipset |
| 6x SATA 6Gb/s ports | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (from AMD Processor) | |
| Supports PCIe 4.0/ 3.0 x4 1 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 slot (from AMD B550 chipset) | |
| Supports PCIe 3.0×4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| 1. The supported specification depends on installed processor. | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
| 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| Audio | Realtek® ALC1200 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® | Intel® Wi-Fi 6 AX200 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.1 | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| Back panel ports | 1. PS/2 Combo Port |
| 2. DisplayPort | |
| 3. 2.5G LAN | |
| 4. USB 3.2 Gen 2 10Gbps (Type-A) | |
| 5. HD Audio Connectors | |
| 6. Flash BIOS Button | |
| 7. USB 2.0 | |
| 8. HDMI | |
| 9. USB 3.2 Gen 1 5Gbps (Type-A) | |
| 10. USB 3.2 Gen 2 10Gbps (Type-C) | |
| 11. Wi-Fi / Bluetooth | |
| 12. Optical S/PDIF OUT | |
| LED Features | 1x EZ LED Control switch |
| 4x EZ Debug LED | |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| Hardware Monitor | CPU/ System/ Chipset temperature detection |
| CPU/ System/ Pump fan speed detection | |
| CPU/ System/ Pump fan speed control | |
| Form Factor | ATX Form Factor |
| 12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
| Warranty | 3 Years |
