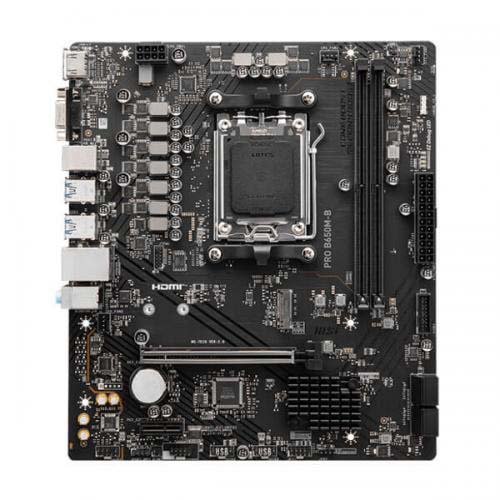

MSI Pro B650M-B AMD DDR5 Motherboard
Overview :
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6800 MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specification :
| Model Name | PRO B650M-B |
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800 (OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800 MHz • 1DPC 2R Max speed up to 6000 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 215mmx243.84mm |
| Warranty | 3 Years |
