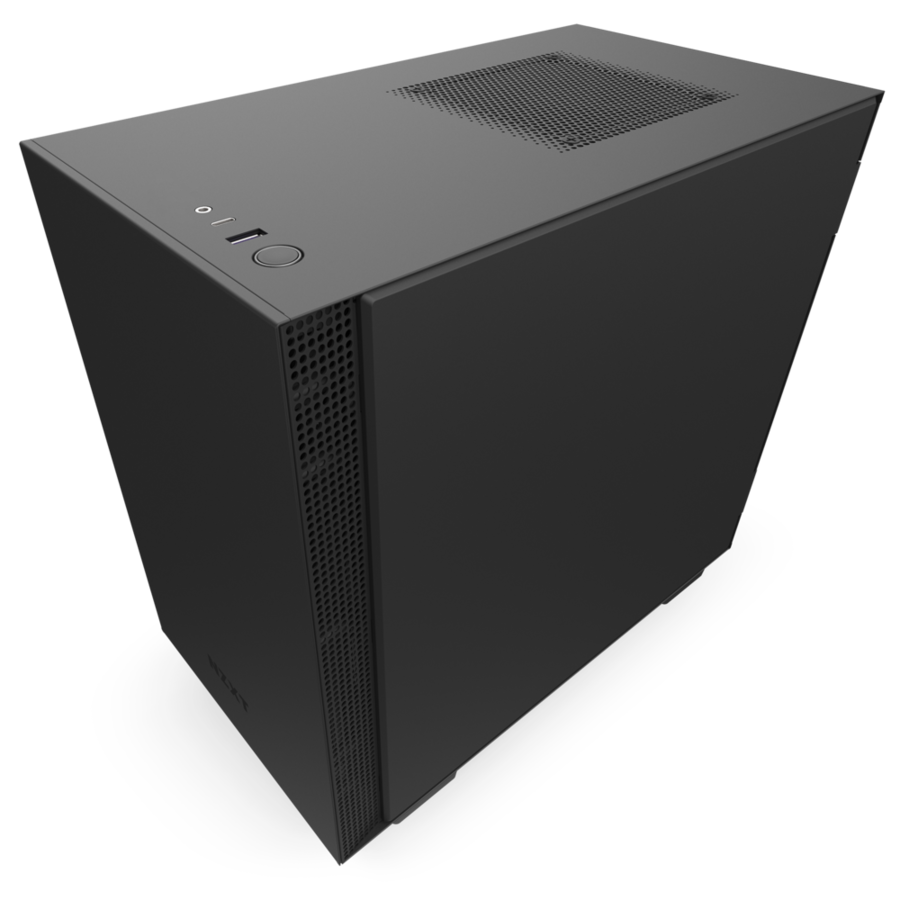

NZXT H Series H210 Matte Black Tempered Glass Mini-ITX Tower Case CA-H210B-B1
Overview :
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H210i.
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 240mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
Specification :
| Dimensions | W: 210mm H: 349mm D: 372mm (with feet) |
| Material(s) | SGCC Steel and Tempered Glass |
| Weight | 5.9 kg |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | 1x USB 3.1 Gen 1 Type-A 1x USB 3.1 Gen 2 Type-C 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories | Installation screws 10 x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) 1x GPU stand |
| Expansion Slots | 2 |
| Drive Bays | 2.5″: 3 1 3.5″: 1 |
| Radiator Support | Front: 2x 120mm with Push or Pull Rear: 1x 120mm |
| Fan Support | Front: 2x 120 / 2x 140mm Top: 1x 120mm (1 AER F120 Case version included) Rear: 1x 120mm (1 AER F120 Case version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 16.3mm GPU Clearance: Up to 325mm CPU Cooler: Up to 165mm Front Radiator: 85mm Rear Radiator: 42mm PSU Length: 311mm |
| Warranty | 2 years |
| Model Number | CA-H210B-B1 |
