SABRENT 4-Drive M.2 NVMe SSD to PCIe 4.0 x16 Bifurcation Adapter Card with Active Cooling EC-P4BF
Overview :

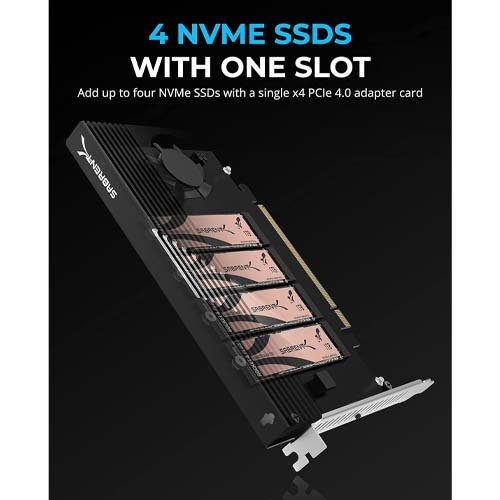

- Add up to four high-performance NVMe SSDs to a system with a single adapter in a physical x16 PCIe slot.
- The system requires the PCIe bifurcation (lane splitting) function to add more than one SSD with a full 16 lanes (x4/x4/x4/x4) required for 3 or 4 drives (x8/x8 or x4/x4 for two).
- Supports even the fastest PCIe 4.0 SSDs but also works with older and newer generation SSDs at up to 4.0 speeds.

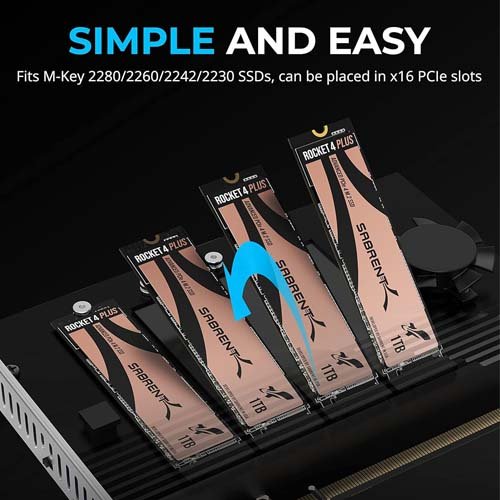

- Works in older 3.0/2.0 systems that have PCIe bifurcation support. Compatible with NVMe SSDs in the M.2 2230/2242/2260/2280 form factors for your convenience.
- Designed with quality aluminum for physical stability and top-notch cooling. Thermal padding is included to ensure the best cooling interface for your SSDs.
- Optional active cooling (fan) via a rear-positioned switch for high-performance environments. Your drives won’t throttle in here.
- The card is plug and play with no drivers required. Supports Intel® VROC and AMD Ryzen™ NVMe RAID with their respective limitations.
Specification :
| SKU |
| EC-P4BF |
UPC
8-40025-25374-2
Material
Aluminum
System Requirements
• Windows 8.1 or higher.• One empty PCIe x16 slot.• A motherboard and BIOS compatible with PCIe Bifurcation (also called PCIe Splitting) is required. For instance: Intel VROCK / AMD Ryzen NVMe RAID.
Dimensions
Lenght7.1 in Width5.4 in Height0.65 in Weight17 oz
What’s in the Box?
• 4-DRIVE NVMe SSD to PCIe 4.0 x16 card with active cooling.
• All necessary screws.• Quick user guide.
