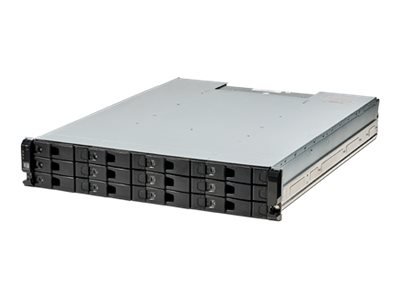

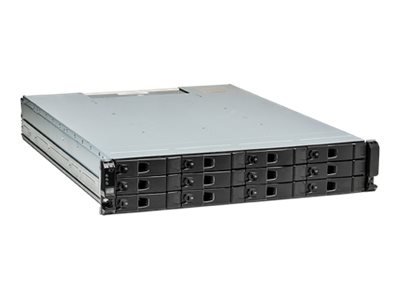

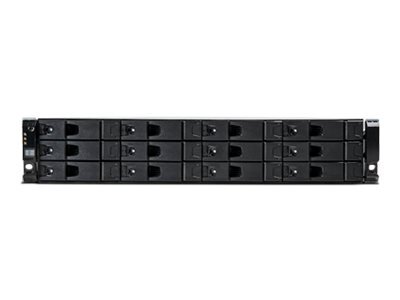

Seagate Exos X 2U12 SAN 192TB Storage System D3835X000000DA
Overview :
Seagate® Exos™ X 2U12 delivers advanced data protection, capacity, and performance at an entry-level cost.
Key Advantages
Maximize Capacity and Consistent High Performance. Leverage both speed and performance at a budget-friendly price. This system enables even the smallest business to get data to applications fast, with maximum throughput of up to 7GB/s. Additionally, businesses can expand the system as data requirements grow, with up to 216TB of storage capacity in only a 2U rack mount.
Deliver Versatile Architecture Built to Scale. Use this flexible solution for costconscious businesses that require high read and write throughput as well as more storage. Application access to data is virtually instantaneous, and purpose-built modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hot-swappable components.
Ensure Applications Have Access to Critical Data. Take advantage of features that enable extreme cost efficiency while also providing up to 99.999% data availability. Parallel architecture, data replication, and fast streaming make access to data unfettered. In addition, exclusive Seagate ADAPT data protection technology supports fast and efficient drive rebuilds that virtually eliminate system downtime.
Reduce Cost and Resources. Meet stringent worldwide requirements for recycling and environmental friendliness with a nimble system that flexes as use cases evolve and capacity needs increase. It is perfectly suited for the SMB market due to high capacity and efficient management capabilities, and can help you minimize environmental impact and recognize cost savings through high performance.
Build In Security at the Foundation of the Data Life Cycle. Protect the most valuable business assets with Seagate Secure™ cybersecurity features and intelligent firmware -such as SFTP, SED support, and administrator access controls-that provide builtin security measures for reliable and safe file access, transfer, and management.
Specification :
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable – 2U |
| Chassis | |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-3 |
| Storage | |
| Max Supported Capacity | 216 TB |
| HDD Array External Interface | SAS 12Gb/s |
| RAM | |
| Installed Size | 16 GB |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap – 3.5″ |
| Interfaces | Ethernet 1000 (management) – RJ-45 ¦ USB (management) – mini-USB Type A |
| Miscellaneous | |
| Features | Software encryption, SNMP support, hot-swappable fans, hot-swappable controllers, SMTP support, Snapshot function, Seagate ADAPT |
| Compliant Standards | VCCI, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, DEEE, KC, Directive 2009/125/EC, Directive 2006/66/EC, VCCI Class A, KN24, RCM, RoHS 2011/65/EU, BIS, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, ICES-3(A)/NMB-3(A), Directive 2012/19/UE, CAN/CSA-C22.2 No. 60950-1-07 |
| Included Accessories | Rail kit |
| Power | |
| Power Device | 2 x internal power supply – hot-plug |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Power Provided | 580 Watt |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 24.8 in |
| Height | 3.5 in |
| Weight | 37.48 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 – 80% RH (non-condensing) |
