Silverstone RM44 4U rackmount Server Chassis Cabinet SST-RM44
Overview
Supports up to SSI-EEB motherboards
Supports 360mm liquid cooling radiators
8 PCI expansion slots
Includes sliding rail mounting holes for quick rail installation
Includes one USB Type-C interface
Upright or horizontal placement flexibility
Front panel features anti-theft lock design providing additional security
Dual-purpose chassis – Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements.
Enhanced rackmount cooling capabilities

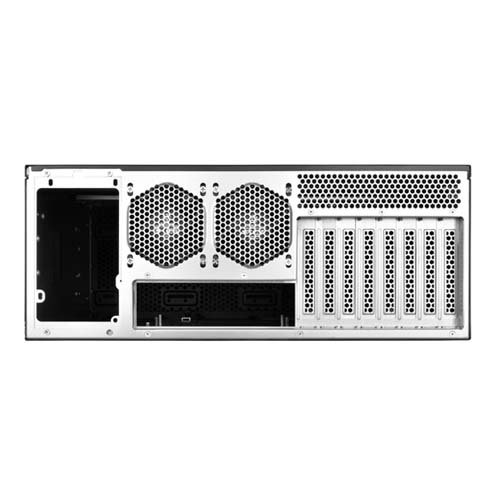

The front chassis supports up to 360mm radiators with 2 x 80mm pre-installed rear fans contributing to excellent front-to-back-directional airflow.
Feature-rich panel
The front panel features star-crossed ventilation holes which provides an unobstructed air intake, along with anti-theft lock and aluminum handle bars for added security and accessibility.
Excellent space maximization

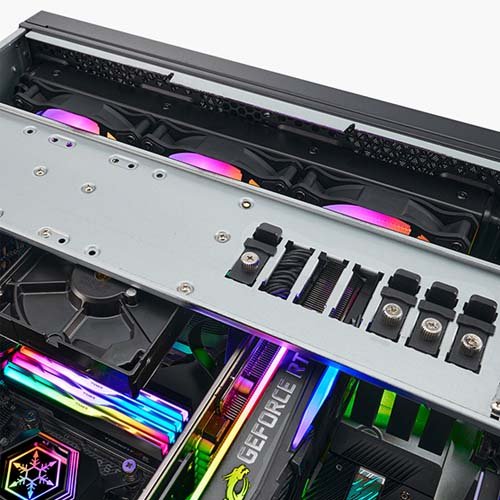

To avoid any unforeseen damages to either the motherboard or the graphics card, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization.
Specifciations
Model No. : SST-RM44
Chassis form factor : 4U
Motherboard : SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Material : Steel
Drive Support
Internal
3.5″ x 2 (compatible with 2.5″ x 3)
2.5″ x 4
Power Supply
PS2 (ATX) / Mini Redundant /
2U Redundant (V3.0 or after)
Limitation of PSU : 255mm
Cooling system
Front : 120mm x 3
Rear : 80mm x 2
(80mm black fan x 2 included)
Radiator support
Front : 120mm x 3 / 120mm x 1 240mm x 1 / 360mm x 1
Limitation of CPU cooler
Height w/ expansion card retainer: 137mm
Height w/o expansion card retainer: 148mm
Expansion card
Length: 424mm (without installing front fans and radiators)
Width w/ expansion card retainer: 113mm
Width w/o expansion card retainer: 154mm
Expansion Slot
8
Front I/O Port
USB Type-C x 1
USB 3.0 x 2
LED Indicators
Power status x 1
HDD activity x 1
LAN activity x 2
Dimension : 440mm (W) x 176mm (H) x 468mm (D), 36.32 liters
17.32″ (W) x 6.93″ (H) x 18.43″ (D), 36.32 liters
Net Weight : 9.2 kg
Extra
Side switch for chassis intrusion security
