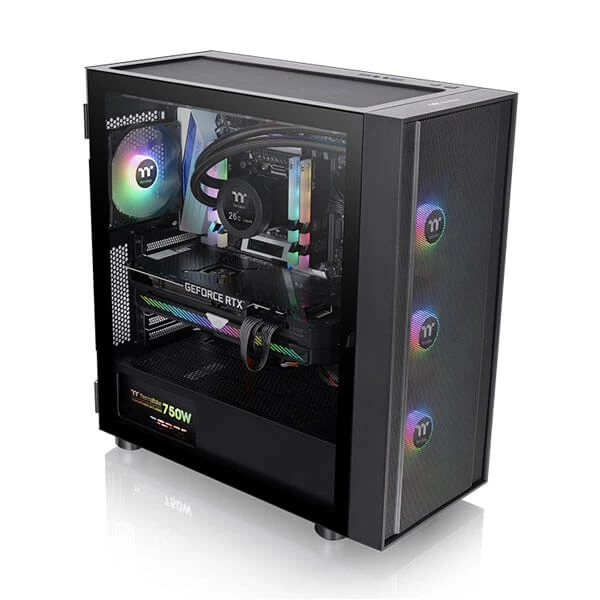

Thermaltake H570 TG ARGB (E-ATX) Mid Tower Cabinet (Black) CA-1T9-00M1WN-01
Overview :
H570 TG ARGB Mid-Tower Chassis
H570 TG ARGB mid-tower chassis is the latest edition of our H series. It can support up to E-ATX (12“ x 13”) Motherboards, and it comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, which can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be fitted in the chassis and up to 360mm radiator can be placed at the top and the front of the H570 TG ARGB mid-tower chassis.
Mesh Front Panel
H570 TG ARGB mid-tower chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.
Three Pre-installed Hydraulic Bearing 120mm ARGB Lite Front Fans
H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite fans at the front of the case. Users may enjoy the fascinating lighting effects by controlling them through the motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover
H570 TG ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

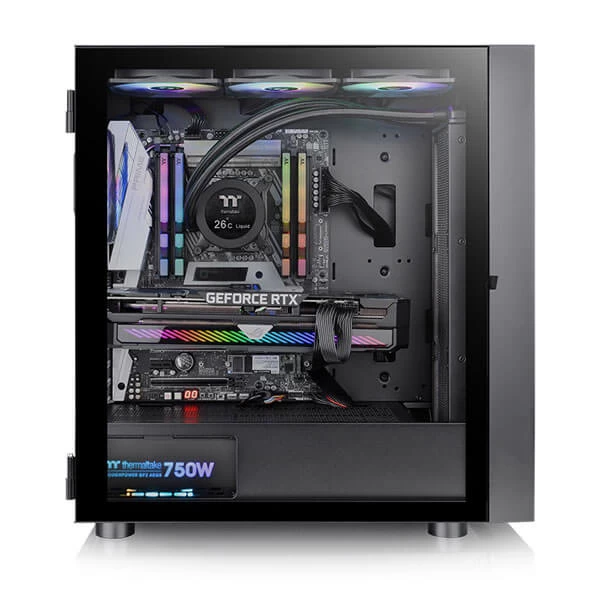

Hinged Tempered Glass Panel
H570 TG ARGB mid-tower chassis comes with one 4mm hinged tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.
Handy I/O Ports
Two USB 3.0 ports, and one HD Audio are placed on the top panel to grant direct access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Specification :
| Part Number | CA-1T9-00M1WN-01 |
| Model | H570 TG ARGB |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 487 x 216 x 463.6 mm |
| (19.2 x 8.5 x 18.3 inch) | |
| NET WEIGHT | 7.5 kg / 16.5 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Front(intake): |
| 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 | |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), |
| 12” x 9.6” (ATX), 12” x 13”(E-ATX) | |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: |
| 3 x 120mm, 2 x 120mm, 1 x 120mm | |
| 3 x 140mm, 2 x 140mm, 1 x 140mm | |
| 2 x 200mm, 1 x 200mm | |
| Top: | |
| 3 x 120mm, 2 x 120mm, 1 x 120mm, | |
| 2 x 140mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm | |
| RADIATOR SUPPORT | Front: |
| 1 x 360mm, 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Top: | |
| 1 x 360mm, 1 x 240mm, 1 x 120mm | |
| 1 x 280mm, 1 x 140mm | |
| Rear: | |
| 1 x 120mm | |
| CLEARANCE | CPU cooler height limitation: |
| 160mm | |
| VGA length limitation: | |
| 375mm | |
| PSU length limitation: | |
| 180mm | |
| Warranty | 3 Years |
