Crucial P3 Plus 500GB PCIe M.2 NVMe Gen 4 SSD CT500P3PSSD8
- 500GB Storage Capacity
- M.2 2280 Form Factor
- PCIe NVMe Gen 4 x4 Interface
- Up to 4700 MB/s Sequential Read Speed
Crucial P310 1TB NVMe Gen4 SSD CT1000P310SSD8
- 1TB Capacity
- M.2 PCIe 4.0 x4 Interface
- Up to 7100 MB/s Read Speed
- Up to 6000 MB/s Write Speed
Crucial P310 2TB NVMe Gen4 SSD with Heatsink CT2000P310SSD5
- 2TB Capacity
- M.2 PCIe 4.0 x4 Interface
- Up to 7100 MB/s Read Speed
- Up to 6000 MB/s Write Speed
Crucial P510 1TB PCIe Gen5 NVMe 2280 M.2 SSD CT1000P510SSD8
- 1TB Capacity
- M.2 PCIe 5.0 x4 Interface
- Up to 11000 MB/s Read Speed
- Up to 9500 MB/s Write Speed
Crucial T700 2TB PCIe 5.0 x4 M.2 Internal SSD with Heatsink CT2000T700SSD5
- 2TB Storage Capacity
- M.2 2280 Form Factor
- PCIe Gen 5.0 x4 Interface
- Up to 12,400 MB/s Sequential Read Speed

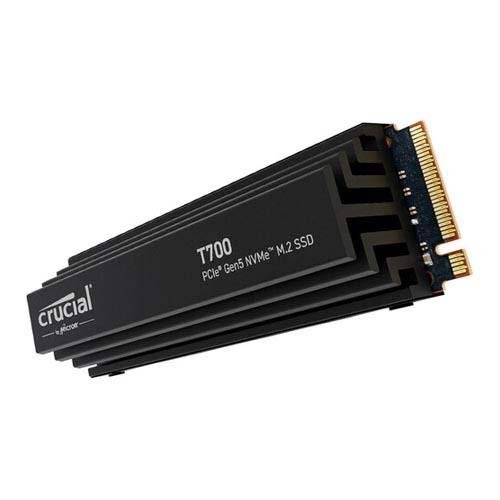

Crucial T700 4TB PCIe 5.0 x4 M.2 Internal SSD with Heatsink CT4000T700SSD5
- 4TB Storage Capacity
- M.2 2280 Form Factor
- PCIe Gen 5.0 x4 Interface
- Up to 12,400 MB/s Sequential Read Speed
Crucial T705 4TB PCIe Gen5 NVMe M.2 SSD with heatsink CT4000T705SSD5
- 4TB Capacity
- M.2 2280 Form Factor
- PCIe 5.0 x4 Interface
- 14,500 MB/s Max Read Speed
EVM 128GB 2.5 Inch SATA SSD EVM25/128GB
(1) Capacity 128GB
(2) Package Dimension 100mmx69.9mmx7mm
(3) Weight 39gm
(4) Part Number EVM25/128GB
(5) Life expectancy of 1 million hours MTBF
(6) Form Factor 2.5 Inch SATA
(7) Interface SATA 3.0 Gb/s SATA 6.0 Gb/s
EVM 128GB M.2 SATA SSD EVMM2/128GB
(1) Form Factor M.2 2280
(2) Interface SATA III6Gbps
(3) NAND FLASH 3D TLC NAND
(4) Performance Read (max.) Sequential Read:up to 520MB/s
(5)Performance Write (max) Sequential Write:up to 370MB/s
(6) Power Consumption 0.195W idle / 0.279W
Avg / 0.642W (MAX) Read / 1.535W (MAX) Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 80mm x 22mm x 3.75mm
EVM 128GB mSATA SSD EVMMS/128GB
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read (max.) Sequential Read: Write:up to 520MB/s 320MB/s
(5) Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(6) Power Consumption 0.195W idle / 0.5W Avg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.2g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 128GB- 60TB
EVM 1TB 2230 NVMe SSD EVMNV30/1TB
- Form Factor M.2 NVMe
- Interface Pcie Gen 3×4 | 3D NAND
- Shock resistance 1500G/0.5ms
- MTBF 2,000,000 hours
- Performance Read (max) Sequential Read: up to 3000MB/s
- Performance Write (max) Sequential Write: up to 1900MB/s
- Model – 1TB NVMe PCIe 2230/EVMNV30/1TB
- Warranty – 5 Year Brand Warranty
EVM 1TB NVMe SSD EVMNV/1TB
(1) Form Factor M.2 NVMe
(2) Interface Pcle Gen 3×4
(3)Shock resistance 1500G/0.5ms
(4) MTBF 2,000,000 hours
(5) Performance Read (max.) Sequential Read:up to 2300MB/s
(6)Performance Write (max) Sequential Write:up to 1800MB/s
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 80mm x 22mm x 3.75mm
EVM 256GB 2242 M.2 SATA SSD EVMM242/256GB
(1) Form Factor M.2 (2242) SSD
(2) Interface SATA III6Gb/s
(3) Flash Type 3D NAND flash
(4) Performance Read / Write (max.)Sequential Read: Write:up to 530MB/s 480MB/s
(5) 4K Random Read/ Write (IOmeter) Read :50,000 IOPSWrite 75,000 IOPS
(6) Mean Time Between Failure (MTBF) 2,000,000 hours (s)
(7) Terabytes Written 160 TB
(8) Power Consumption 0.820W Idle
1.05W (MAX) Read1.55W (MAX) WriteA (Unit)
(9) Operating Voltage 3.3V  5%
(10) Storage Temperature -40*C to 85*C
(11) Operating Temperature 0*C to 70*C
(12) Weight 5g
(13) Dimensions 42.0 mm x 22.0 mm x 3.85mm
EVM 256GB 2242 NVMe SSD EVMNV42/256GB
(1) Form factor: NVMe M.2 2242
(2) Interface: SATA III 6Gb/s
(3) Flash type: 3D NAND Flash
(4) Shock resistance: 1500G/0.5ms
(5) System Requirement: Computer with M.2 Slots
(6) Supporting PCIe interface
(7) Storage temperature : -40oC to 85oC
EVM 256GB M.2 SATA SSD EVMM2/256GB
(1) Form Factor M.2 2280
(2) Interface SATA III6Gbps
(3) NAND FLASH 3D TLC NAND
(4) Performance Read (max.) Sequential Read:up to 530MB/s
(5)Performance Write (max) Sequential Write:up to 420MB/s
(6) Power Consumption 0.195W idle / 0.279W
Avg / 0.642W (MAX)Read / 1.535W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 80mm x 22mm x 3.75mm
EVM 256GB mSATA SSD EVMMS/256GB
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read / Write Sequential Read: Write:up to 520MB/s 500MB/s
(5)Maximum 4K Read/ Write up to 79,000/25,000 IOPS
(6) Power Consumption 0.195W idle / 0.5WAvg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.7g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 256GB- 100TB
EVM 2TB 2.5 Inch SATA SSD EVM25/2TB
(1) Capacity 2TB
(2) Package Dimension 100mmx69.9mmx7mm
(3) Weight 39gm
(4) Part Number EVM25/2TB
(5) Life expectancy of 1 million hours MTBF 5 Years warranty
(6) Form Factor 2.5 Inch SATA
(7) Interface SATA 3.0 Gb/s SATA 6.0 Gb/s
EVM 512GB 2.5 Inch SATA SSD EVM25/512GB
(1) Capacity 512GB
(2) Package Dimension 100mmx69.9mmx7mm
(3) Weight 39gm
(4) Part Number EVM25/512GB
(5) Life expectancy of 1 million hours MTBF
(6) Form Factor 2.5 Inch SATA
(7) Interface SATA 3.0 Gb/s SATA 6.0 Gb/s
EVM 512GB 2230 NVMe SSD EVMNV30/512GB
- Capacity 512GB
- Form Factor M.2 NVMe 2230
- Interface Pcle Gen 3×4
- Shock resistance 1500G/0.5ms
- MTBF 2,000,000 hours
- Performance Read (max.) Sequential Read: up to 3600MB/s
- Performance Write (max) Sequential Write: up to 2800MB/s
- Storage Temperature -40*C to 85*C
- Operating Temperature 0*C to 70*C
- 5 Years Warranty
EVM 512GB 2242 M.2 SATA SSD EVMM242/512GB
(1) Form Factor M.2 (2242) SSD
(2) Interface SATA III6Gb/s
(3) Flash Type 3D NAND flash
(4) Performance Read / Write (max.)Sequential Read: Write:up to 520MB/s 460MB/s
(5) 4K Random Read/ Write (IOmeter) Read :50,000 IOPSWrite 75,000 IOPS
(6) Mean Time Between Failure (MTBF)2,000,000 hours (s)
(7) Terabytes Written 160 TB
(8) Power Consumption 0.820W Idle1.05W (MAX) Read1.55W (MAX) WriteA (Unit)
(9) Operating Voltage 3.3V  5%
(10) Storage Temperature -40*C to 85*C
(11) Operating Temperature 0*C to 70*C
(12) Weight 5g
(13) Dimensions 42.0 mm x 22.0 mm x 3.85mm
EVM 512GB 2242 NVMe SSD EVMNV42/512GB
(1) Form factor: NVMe M.2 2242
(2) Interface: SATA III 6Gb/s
(3) Flash type: 3D NAND Flash
(4) Shock resistance: 1500G/0.5ms
(5) System Requirement: Computer with M.2 Slots
(6) Supporting PCIe interface
(7) Storage temperature : -40oC to 85oC
EVM 512GB M.2 SATA SSD EVMM2/512GB
(1) Form Factor M.2 2280
(2) Interface SATA III6Gbps
(3) NAND FLASH 3D TLC NAND
(4) Performance Read (max.) Sequential Read:up to 540MB/s
(5)Performance Write (max) Sequential Write:up to 450MB/s
(6) Power Consumption 0.195W idle / 0.279W
Avg / 0.642W (MAX)Read / 1.535W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 80mm x 22mm x 3.75mm
EVM 512GB mSATA SSD EVMMS/512GB
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read (max.) Sequential Read: Write:up to 520MB/s 500MB/s
(5) Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(6) Power Consumption 0.195W idle / 0.5W Avg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.7g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 512GB- 200TB
